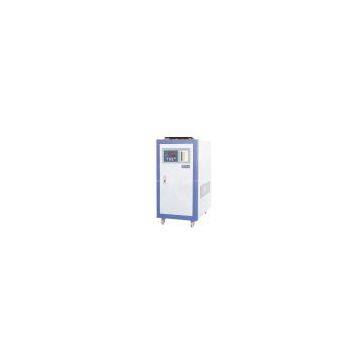

NWS-3AC Air Cooled Chiller

1. Our compressor is imported from Italy, France and so on, being of high-quality built-in safe protection, with low noise, save electricity and durable.
2. Cooling capacity range: 131kw~971kw
3. Standard conditions: Chilled water inlet temperature is 20 degree, outlet temperature is 15 degrees. Cooling air inlet temperature is 40 degrees, outlet temperature is 45 degrees. But the lowest temperature can be -25 degress.
4. Working range:
chilled water outlet temperature range: 5-35 degrees
cooling air outlet temperature range: 22-50 degrees
5. Stardard Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%, Can also be customized according to customers'request
6. The quantity of compressor can be one or two, each compressor is independent refrigeration system. Each other run independently. When the one is working, the other can be working or not.
7. Use PLC microcomputer control from Germany Siemens LCD touch screen, both English and Chinese human-machine interface.
8. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.
9. Our standard refrigerant is R22, but you can choose to use environmental refrigerant such as R407C, R134A or R507.
