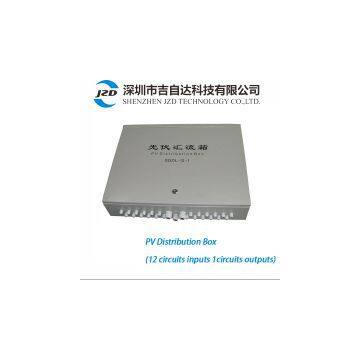

PV Distribution Box (12 Circuits Inputs 1circuits Outputs)

Shenzhen JZD Technology Co.,Ltd.
We are a high and professional manufacturer in China,which is mainly specialized in researching, developing, manufacturing and marketing of Solar Power System which including Hybrid Inverter,Grid Off Inverter,Grid Tied Inverter,Solar Charge Controller,Pumping Inverter,Solar Panals,Battery Banks..
Website:

TEL:0755 - 36309298

FAX:0755 - 29360915

Email: sales@jzd-power.com

Photovoltaic power generation system, in order to reduce the photovoltaic module and inverter between the connecting cables, convenient maintenance, reduce the loss and improve the safety and reliability of the product, generally require in the photovoltaic module and inverter added between confluence device.

Photovoltaic junction box besides having the function of pv bus outside, and at the same time, should also have a current counter-attack, over current protection, over-voltage protection, lightning protection and a series of perfect protection function.

Main features：

1.two sets of independent photovoltaic array input/output, maximum open circuit voltage 500v;

2.multiway photovoltaic array input, single way input array maximum current of 10 A;

3.single way photovoltaic array to join the high-voltage fuse protection,counter-attack protection;

4.Photovoltaic special high voltage lightning protection device protection;

5.Photovoltaic special high voltage circuit breaker control output;

6.Meet outdoor installation requirements, protection class IP65.

Technical data
