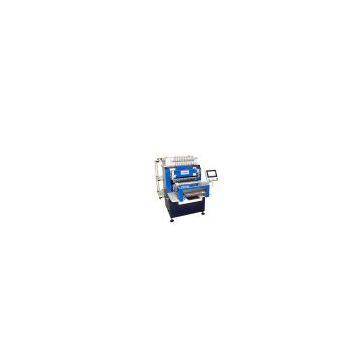

Help Center12 Spindle Automatic Winding Machine & Wire Twisting Machine
Related Products
-
16 Spindle Automatic Winding MachineNegotiableMOQ: 1 Piece -
12 Spindle Automatic Winding MachineNegotiableMOQ: 1 Piece
-
8 Spindle Automatic Winding MachineNegotiableMOQ: 1 Piece
-
10 Spindle Automatic Winding MachineNegotiableMOQ: 1 Piece
-
OEM Custom Stamping Parts Sheet Metal Stamped Welded ComponentsNegotiableMOQ: 1 Piece
Product Introduction:
1. The main spindle uses Japan's Matsushita AC servo motor, running speed and positioning speed is quick and accurate;
2.Three-dimensional uses the Japan’s Matsushita AC servo motor and THK ball screw guide way , which can be implement vertical, horizontal two directions of the terminal tangled lines ,thread clamped and cut the line ;and angle tangled lines, thread clamp, cut the line and the tape device also can be selected;
3. Fixture replacement convenient: Using fast chuck to replace tooling rapidly, improve the efficiency of the replacement of the winding varieties;
4. Use multi-axis CNC control system. When switching models, using the machine procedure and replace the fixture;
5.Wire twisting machine uses Japan’s Matsushita high-performance PLC, operation simply, which can easily finish the setting of line laps, the speed and number of strands;
6. The main spindle of wire twisting machine is Japan's Matsushita AC servo motor, positioning accurate and running smooth;
Production Description:
Spindle number (spindle): 12
Control axes: 4
Axis spacing (mm): 37
Spindle speed (rpm): 15000/20000
Wire size (mm): 0.3(max)
Skeleton diameter (mm): 35 (max)
Guide needle moving distance:
X-axis (mm): 85(max)
Y-axis (mm):85(max)
Z-axis (mm): 55(max)
Total Power: 2000W
Dimension (L*W*H): 1100 x 800 x 1200mm
Weight : 800 KGs
