Carbon fiber fabric / carbon cloth/ carbon sheet/ carbon product
It is made of carbon fiber by woven unidirectional, plain weaving or twill weaving style. The carbon fiber is high strength-to-weight and stiffness-to-weight ratios, and carbon fabric is thermally and electrically conductive and exhibit excellent fatigue resistance. When properly engineered, carbon fabric composites can achieve the strength and stiffness of metals at significant weight savings. Carbon fabrics are compatible with various resin systems including epoxy, polyester and vinyl ester resins. It is widely used as the basic material for aerospace, defence, leisure, automotive products, industry and the medical sector as well as other applications includes building construction repair and strengthening.
General Data
Weaving Style: Unidirectional, Plain, Twill
Input Available: 3k, 6k, 12k Carbon fiber
Weight: 15 0 ~ 600g / m2
Roll length: To be specified
Remark :
1. The above parameters are only in common condition. In case of order, the parameters are subject to the customer's confirmation.
2. CWP : Carbon plain weave fabric
3. CWT : Carbon twill weave fabric
4. CWU : Carbon woven unidirectional fabric
Packaging

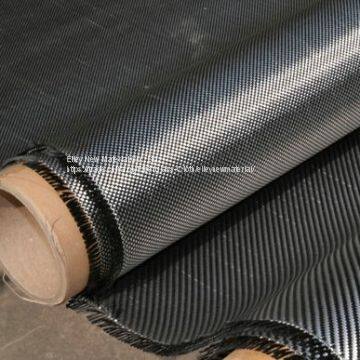

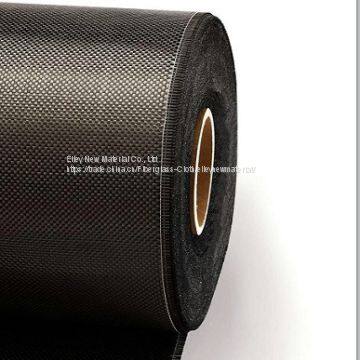

Product is manufactured in form of a roll wound on a paper tube and then packed in a plastic film and placed within a cardboard carton. Rolls can be loaded into a container directly or on pallets.
Storage
It is recommended that the carbon fiber fabric are stored in a cool and dry environment. Recommended temperature range of storage is between 10 ~ 30 degree and relative humidity between 50 ~ 75%.
The carbon fiber fabric should remain in the packaging until just prior to use.
Typical Range
Product Code |
Density (g/m2) |
Input Tex |
Fabric Count (ends/10cm ) |
Tensile Strength(Mpa) |
Tensile Modulus(Gpa) |
||
Warp |
Weft |
Warp |
Weft |
||||
CWP200 |
200 |
3k |
3k |
50 |
50 |
||
CWT200 |
200 |
3k |
3k |
50 |
50 |
||
CWU200 |
200 |
12k |
≥ 3500 |
≥ 230 |
|||
CWU300 |
300 |
12k |
≥ 3500 |
≥ 230 |
|||
