Vacuum infusion comsumables

Vacuum bagging film

It is made of 5 layers of PA and PE after common extruding. It is including Nylon content 60-70%, high breaking strength, ductility and good consistency, toughness.

Technicals:

Mixing:        PA    60-70%

PE    30-40%

Breaking ductility：    350 %

Operating temperature:  150°C

Colour: milk white

Size：65µmx 4mx 200m

Storage

It is stocking under no light, dry place without packing broken.

Expiration date is 2 years under 25°C.

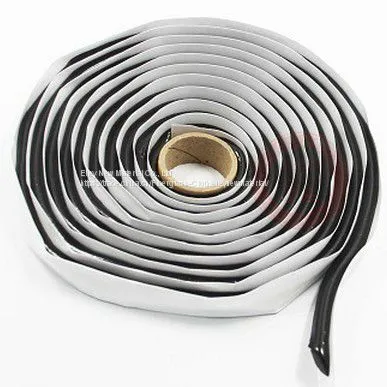

Sealant tape

Sealant tape is a viscoelasticity adhesive tape, made of mono element butyl-latex after adding fortifier and tackifier. It is good heat resisting, low toughness.

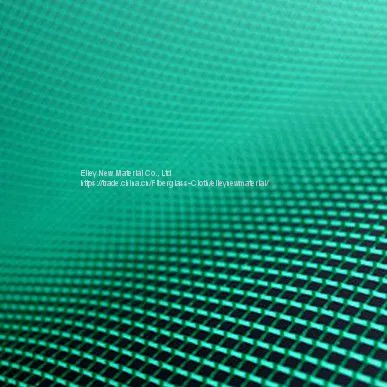

Infusion net

Release film

Release film is smooth surface, high cleanliness, high mechanical, equably transparency, lower heat-shrinkage rate, better tensile strength etc..

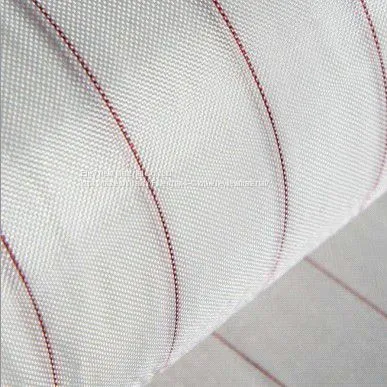

Peel ply

Peel ply have white + blue line or white + red line, density is 85g/m2 or 105g/m2. It is mainly used in wind power blade, aerospace, car, boat building.

Resin transfer tube

Resin transfer tube is used for transmitting resin in vacuum process. It is made of plastic, transmitting fast.

Two type, Diameter: inner diameter 10mm, out diameter 12mm;

inner diameter 12mm, out diameter 16mm

Spiral tube

Spiral tube is used for winding T-joint and wet-out resin.

Usage: 1.Winding and fixing T-joint

      2.Wet-out resin

T-joint

T-joint is used for connecting between resin transfer tube and spiral tube in vacuum process.

Plastic T-joint is one-off usage.

Copper T-joint is recycling usage.

Usage: 1.Connecting resin transfer tube and spiral tube

      2.Wet-out resin

Breather fabric
