Strandlink

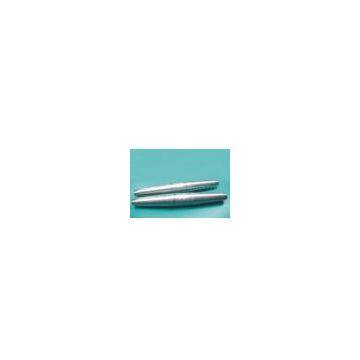

A QuickLink is a mechanical holding device for wire, strand and rod. The QuickLink is used primarily by telephone and electric utilities to terminate strand or rod at the pole top and at the anchor eye.For Suspension Strand, Guy Strand and Static Wire. Used to terminate aerial support strand messenger, and at the top and bottom ends of down guys. All-Grades QuickLink is for those 7-wire strands and solid wires identified by name brands, coatings, types of steel, and within diameter ranges listed, but not 3-wire strand and not Alumnoweld. Recommended use on Galvanized zinc coated, Aluminized, and Bethalume. Note: Can be used with all breaking strengths for galvanized guy strand messenger.

Catalog Number                             Strand Range(mm)                               Minimum Holding Strength(LBS/KG)

QuickLink1/4                                   6.0-6.6                                               6000LBS/2700KG

QuickLink3/16                                 7.8-8.7                                               10080LBS/4500KG

QuickLink3/8                                   9.0-9.6                                               13860LBS/6300KG

QuickLink7/16                                10.5-11.4                                             18720LBS/8600KG
