1500W Parallel Output PFC Function Power Supply

Shenzhen Jero Industry Co., Ltd
1500W Parallel Output PFC Function Power Supply thumbnail-1
1500W Parallel Output PFC Function Power Supply photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2002
Total Employees:
101 - 200 People
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Features

  • Universal AC input
  • ZVS new technology
  • AC input active surge current limiting
  • High efficiency up to 91%
  • Built in active PFC function,PF>0.95
  • Forced air cooling by built-in DC fan
  • Output voltage can be trimmed between 70~100% of the rated output voltage
  • High power density 8.3W/inch³
  • Current sharing up to 6000W(3+1)
  • Alarm signal output
  • Built-in 12V/0.1A auxiliary output for remote control
  • Built-in remote ON-OFF control
  • Built-in remote sense function

Standards

PFCParallelCBTUVCSUUSCE

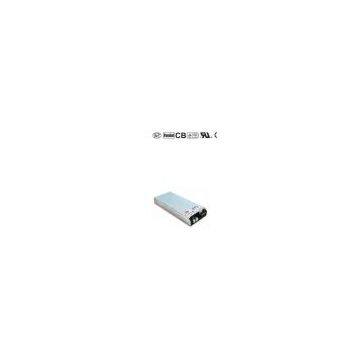

Product Image - RSP-1500 Series - 1500W Parallel Output PFC Function Power Supply

Specification

Voltage Range 90 ~ 264Vac 127 ~ 370Vdc
Input Frequency 47 ~ 63Hz
Power Factor 0.95/230Vac 0.98/115Vac at full load
Input Current 17A/115Vac 8A/230Vac
Inrush Current 30A/115Vac 60A/230Vac
Leakage Current <2.0mA / 240Vac
Line Regulation ±0.5%
Setup, Rise Time 1500ms, 100ms at full load
Hold Time 5V,12V: 10ms at full load 15V,24V: 14ms at full load 27V,48V: 16ms at full load
Over Load Protection 105 ~ 135% rated output power.
Constant current limiting unit will shut down o/p voltage after 5sec. Re-power on to recover
Over Voltage Protection Shut down o/p voltage, re-power on to recover
Over Temperature Protection 95°C±5°C (TSW2) Detect on heatsink of power transistor
Shutdown o/p voltage, recovers automatically after temperature goes down
Auxiliary Power (AUX) 12A@0.1A (only remote ON/OFF control)
Working Temperature -20°C to +70°C (refer to output load derating curve)
Working Humidity 20 ~ 90% RH non-condensing
Storage Temperature, Humidity -40°C to +85°C, 10~95% RH
Temperature Coefficient ±0.05%/°C (0~50°C)
Vibration 10 ~ 500Hz, 2G 10min./1 cycle, 60min. each along X,Y,Z axes
Withstand Voltage I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Compliance to EN55022 (CISPR22); EN61000-3-2,-3;
EN61000-4-2,3,4,5,6,8,11; ENV50204, light industry level, criteria A
MTBF 62.6K hrs min. MIL-HDBK-217F (25°C)

Items

RSP-1500 Series Output Data

Part Code Voltage Rated Current Current Range Rated Pwr R&N Volt. Adj. Tol. Load Reg. Eff. OVP
RSP-1500-5 5V 240A 0 ~ 240A 1200W 150mV 4.5 ~ 5.5V ±2.0% ±2.0% 80% 5.75 ~ 6.75V
RSP-1500-12 12V 125A 0 ~ 125A 1500W 150mV 10 ~ 13.5V ±1.0% ±0.5% 87% 13.8 ~ 16.8V
RSP-1500-15 15V 100A 0 ~ 100A 1500W 150mV 13.5 ~ 16.5V ±1.0% ±0.5% 87% 17 ~ 20.5V
RSP-1500-24 24V 63A 0 ~ 63A 1512W 150mV 20 ~ 26.4V ±1.0% ±0.5% 90% 27.6 ~ 32.4V
RSP-1500-27 27V 56A 0 ~ 56A 1512W 150mV 24 ~ 30V ±1.0% ±0.5% 90% 31 ~ 36.5V
RSP-1500-48 48V 32A 0 ~ 32A 1536W 200mV 43 ~ 56V ±1.0% ±0.5% 91% 57.6 ~ 67.2V
