2000W Power Frequency Pure Sine Wave Inverter

Shenzhen Jero Industry Co., Ltd
2000W Power Frequency Pure Sine Wave Inverter thumbnail-1
2000W Power Frequency Pure Sine Wave Inverter thumbnail-2
2000W Power Frequency Pure Sine Wave Inverter photo-1

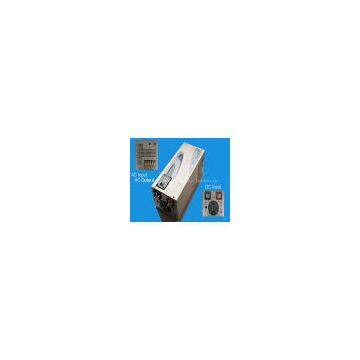

2000W Power Frequency Pure Sine Wave Inverter photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2002
Total Employees:
101 - 200 People
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
【Product specifications】 Input DC12V or DC24V,
                           Output AC220V OR AC110V,Power 2000W
【Product Category】       inverter,power inverter,Power frequency
                                Inverter, power convertercharging inverter,
                           Pure sine wave inverter,Dedicated air-conditioning
                           power inverter

【Technical parameters】
General specification
Input wave form:            sine wave
Nominal voltage:        120VAC       230VAC
Low voltage trip:       90v±4%     184v/154v±4%
Low voltage re engage:  100±4%     194v/164v±4%
High voltage trip:      140v±4%    253v±4%
High voltage re engage: 135v±4%    243v±4%
Max input AC voltage:   150VAC       270VAC
Nominal input frequency:50HZ or 60HZ(Auto detect)
Low freq trip:          47HZ for 50HZ,57HZ for 60HZ
High freq trip:         55HZ for 50HZ,65HZ for 60HZ
Output wave form:       (bypass mode)same as input
Overload protection:    Circuit breaker
Short circuit protection:Circuit breaker
Transfer switch rating:  30amp 0r 40amp
Efficiency on line transfer mode: 95%+
line transfer time:      10ms Typical
Bypass without battery connected: YES
Max bypass current: 30amp or40amp
Bypass over load current:30 amp or 45amp:Alarm

Inverter specification/output
Output wave form:       Pure sine wave
Output continuos power watts:1000  2000   3000   4000   5000  6000
Output continuos power VA:   1000  2000   3000   4000   5000  6000
Power factor:      0.9-1.0
Nominal output voltage rms: 120/230VAC
Output voltage regulation:  ±10%rms
Output frequency: 50HZ±0.3HZ or 60Hz±0.3Hz
Nominal efficiency:>88%
Surge ratings:               3000  6000   9000   12000  15000   18000
Short circuit protection:Yes,fault after 10 secs

Inverter specification/input
Nominal input voltage:      12v         24v         48v
Minimum start voltage:      10v         20v         40v
Low battery alarm:          10.5v       21v         42v
Low battery trip:           10v         20v         40v
High voltage alarm:         16v         32v         64v
Power saver:           Below 25watts when enabled
Power saver:           Same switched on/off onremote

Charger mode specification
Input voltage range:   95-127VAC  194-243VAC/164-243VAC(W)
Output voltage:        Dependent on battery type
Charge current:        35A/70A
Battery initial voltage for start up: 0-15.7v for12v(*2 for 24v;*4 for 48v)
Over charge protection shutdown:15.7v for 12v(*2 for 24v;*4 for 48v)

charger curves(4 stage constant surrent) battary types
4 step digital controlled progressive charge

Battery type:              fast V       Float V(*2 for 24v;*4 for 48v)
Gel U.S.A                  14.0         13.7
A.G.M.1                    14.1         13.4
A.G.M.2                    14.6         13.7
Sealed lead acid           14.4         13.6
Gel euro                   14.4         13.8
Open lead acid             14.8         13.3
Calcium                    15.1         13.6
De-sulphation              15.5 for 4hrs
Rwmote control/RS232/USB   Yes.Optional

Size:in mm                 1000/2000/3000 Model:442*218*179mm
                           4000/5000/6000 Model:598*218*179mm
Weight:                    1000W(18kg) 2000W(20kg) 3000W(22kg)
                           4000W(35kg) 5000W(38kg) 6000W(40kg)
