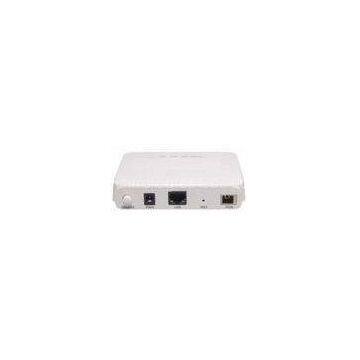

EPON ONU 1*GEPON Port+1*Ethernet LAN Port(10/100/1000 Base-T Auto-sensing) EN2000-01GS
Negotiable
MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GCOM
Place of Origin:
China
Model Number:
EN2000-01GS
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
FTTx User Terminal Data-type EPON ONU With 1*EPON Port+4*Ethernet Port EN2000-04SNegotiableMOQ: 1 Piece -
EPON ONU 1*GEPON(TX1310nm/RX1490nm,20Km,LC),2*10/100Base-T,plastic Shell,external Power,DC 10.8~13.2NegotiableMOQ: 1 Piece
-
FTTx EPON ONU Client Power Supply Version1*EPON(1490nm Receive,1310nm Transmit,20Km,SC),15*10/100BNegotiableMOQ: 1 Piece
-
RX1490nm EPON ONU Fiber To The Building IEEE 802.3ah EPON Standard With External Power SupplyNegotiableMOQ: 1 Piece
-
1 GEPON TX1310nm ONU Optical Network Unit Galvanized Steel Shell EN2000-04v2NegotiableMOQ: 1 Piece
Brand Name
GCOM
Place of Origin
China
Model Number
EN2000-01GS
Delivery Time:15 working days
Certification:CE, FC, UL, CCC
Hardware feature
Product
EN2000-01GS
Hardware and Interface
1 GEPON interface
1 Ethernet LAN port(10/100/1000 Base-T
Ethernet Port
Port auto negotiation
MDI/MDIX
802.3x flow control
Per port ingress/egress rate limit
Storm control
MAC limit per port
Port isloation
STP
Dimensions
120mm×90mm×30mm(W x D x H,)
PON feature
Compatible with CTC specification
Compatible with 802.3ah
4 queue and SP scheduling
Support Dying Gasp
802.1Q vlan
SVL
Vlan ID:1-4094
CTC vlan
MAC address table
64 MAC table
Static MAC address entry
Black list
Configurable MAC aging time
multicast
IGMP snooping
64multicast entry
CTC controllable snooping
OAM
CLI
Telnet
Web
Firmware Remote & Local upgrade
Voltage
Additional power adaptor
100-240VAC/50-60Hz input,12VDC/1A output
Max power consumption
<=3W
Environment
Temperature:-10℃ ~ 55℃
Humidity: 5% ~75% relative humidity
Certification:CE, FC, UL, CCC
EN2000-01GS EPON ONU
Overview:
EN2000-01GS is designed for EPON ONU device with plastic shell by GCOM. EN2000-01GS EPON ONU satisfies IEEE 802.3u standard and supports 1000M access to the user side. It is a low cost and high speed ONU access device installing in the indoor and corridor with the deployment of FTTH,FTTO,FTTB.
EN2000-01GS transmits data, voice and digital video by flexible PON network structure. It provides uplink speed rate of 1Gb/s, downlink speed rate of 1Gb/s to share high speed bandwidth for users.
Product Specification:
|
Item |
Specification |
|---|
auto-sensing)
1 Internal Console Interface. 1 Power Supply port 1 Reset to Factory Default Button LEDWLAN Interface
