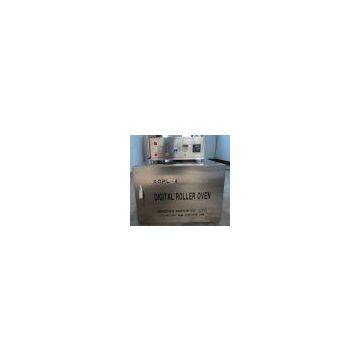

Help CenterDigital Roller Furnace,digital Roller Oven for Testing Drilling Fluids
Related Products
Specifications : XGRL—2
Technical parameters:
Working temperature: 50-260 Roller rotation speed: 50r/min Heating efficiency: 1.4KW Working area: 555×355×365mm Overall size: 813×673×740mm
Purpose & characters: The temperature control part of heating furnace adopts the microcomputer intellectual control technology and you can directly set the temperature digital display. The accuracy is high, and the device is safe and reliable. It can be used to research into the basic ion exchange reaction (Ga + disposed slurry) in the newly prepared slurry and determine the stability of adjuvant in slurry (such as all kinds of thinner and organic glue). It can also be used as dry box, aging oven and ball grinding mill. It can be used to mix the chemical medicine, liquid and powder substance and remove the gas from the liquid.
Specifications : GRL—BX
Technical parameters: Working temperature: 50℃-180℃ Roller rotation speed: 112±5r/min Heating efficiency: 500W Working area: 300×250×220mm Overall size: 660×334×270mm
Purpose & characters: The temperature control part of heating furnace adopts the digital electric regulator. Display accuracy of digital LED is high. The temperature can be set directly. It is easy to operate and carry for its small volume. It can be used to research into the basic ion exchange reaction (Ga + disposed slurry) in the newly prepared slurry and determine the stability of adjuvant in slurry (such as all kinds of thinner and organic glue). It can also be used to mix the chemical medicine, liquid and powder substance and remove the gas from the liquid.
Specifications : GRL—3 portable roller oven
no name specification
1 Power supply 220V±5% 50Hz ,230v is no problem
2 motor 120W
3 Heating power 500W
4 Temperature use scope 0℃~300℃
5 Temperarture controlled precision ±5℃
6 Roller speed 50r/min,also make it according to requirement
7 mud speeds of flow 0.16 m/s, also make it according to requirement
8 No.of aging cell 2
9 Working volume 300×260×210mm
10 Overall dimension 520×460×400mm
GRL-5 digital roller oven specification
no name specification
1 Power supply 220V±5% 50Hz ,230v is no problem
2 motor 180W
3 Heating power 1000W
4 Temperature use scope 0℃~300℃
5 Temperarture controlled precision ±5℃
6 Roller speed 50r/min,also make it according to requirement
7 mud speeds of flow 0.16 m/s, also make it according to requirement
8 No of aging cell 4
9 Working volume 570×360×390mm
10 Overall dimension 690×730×550mm
GRL-7 digital roller oven specification
no name specification
1 Power supply 220V±5% 50Hz ,230v is no problem
2 motor 370W
3 Heating power 1000W
4 Temperature use scope 0℃~300℃
5 Temperarture controlled precision ±5℃
6 Roller speed 50r/min,also make it according to requirement
7 mud speeds of flow 0.16 m/s, also make it according to requirement
8 No of aging cell 6
9 Working volume
10 Overall dimension
GRL-9 digital roller oven specification
no name specification
1 Power supply 220V±5% 50Hz ,230v is no problem
2 motor 370W
3 Heating power 1000W
4 Temperature use scope 0℃~300℃
5 Temperarture controlled precision ±5℃
6 Roller speed 50r/min,also make it according to requirement
7 mud speeds of flow 0.16 m/s, also make it according to requirement
8 No of aging cell 8
9 Working volume 580×600×360mm
10 Overall dimension 700×750×720mm
XGRL-4 roller oven specification
no name specification
1 Power supply 220V±5% 50Hz ,230v is no problem
2 motor 370W
3 Heating power 700W×2
4 Temperature use scope 0℃~300℃
5 Temperarture controlled precision ±5℃
6 Roller speed 50r/min,also make it according to requirement
7 mud speeds of flow 0.16 m/s, also make it according to requirement
8 No of aging cell 8
9 Working volume 555×355×630mm
10 Overall dimension 700×820×685mm
Technical parameters:digital roller oven Working temperature: 50℃-180℃ Roller rotation speed: 112±5r/min Heating efficiency: 500W Working area: 300×250×220mm Overall size: 660×334×270mm
Purpose & characters: The temperature control part of roller oven(heating furnace) adopts the digital electric regulator. Display accuracy of digital LED is high. The temperature can be set directly. It is easy to operate and carry for its small volume. It can be used to research into the basic ion exchange reaction (Ga + disposed slurry) in the newly prepared slurry and determine the stability of adjuvant in slurry (such as all kinds of thinner and organic glue). It can also be used to mix the chemical medicine, liquid and powder substance and remove the gas from the liquid.
The temperature control of digital roller oven adopts the newest intelligent control technology of personal computer. The temperature can be set directly by virtue of digital display. It is characterized by the deviation instruction, high precision and safe working. In addition, the systems of power and electrical control are set in the upper section of the heater body. The import generator control technology of frequency conversion is used in the apparatus. Therefore, the transmission is steady and the noise is slight. It is also convenient for using, maintaining and repairing.
The usage of the instrument is mainly in the following aspects:
(1) Evaluate the stability of drilling fluid additives (Such as various deflocculates and organic polymers).
(2) Used as a drying oven.
(3) Used as an aging oven.
(4) Used as a ball grinder.
(5) Stir chemical solution.
(6) Mix liquids or solids.
(7) Exclude air from a fluid.
