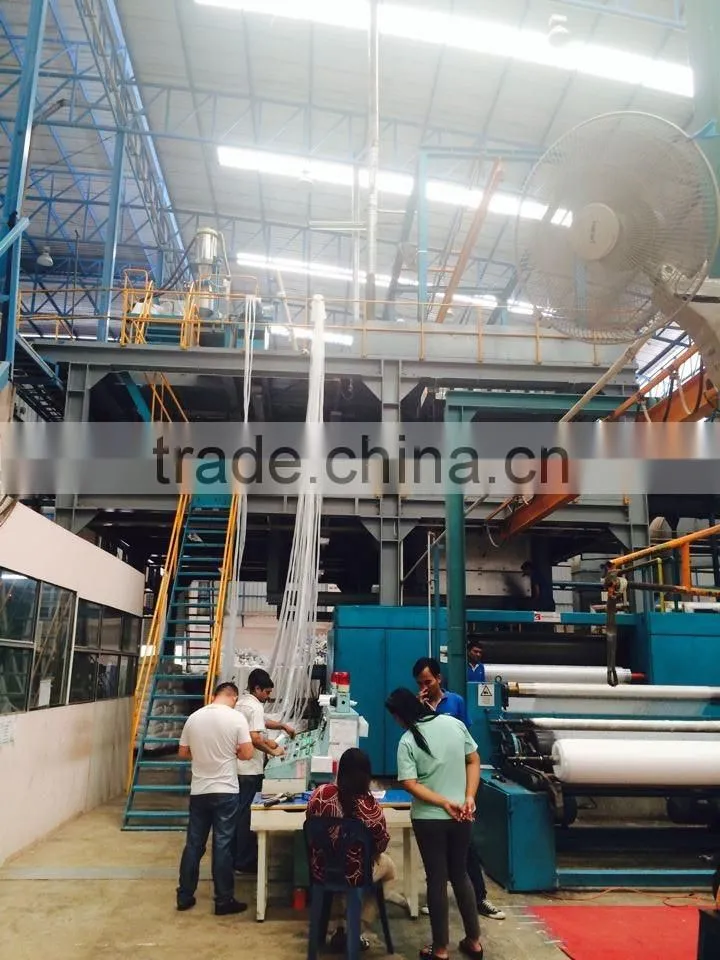

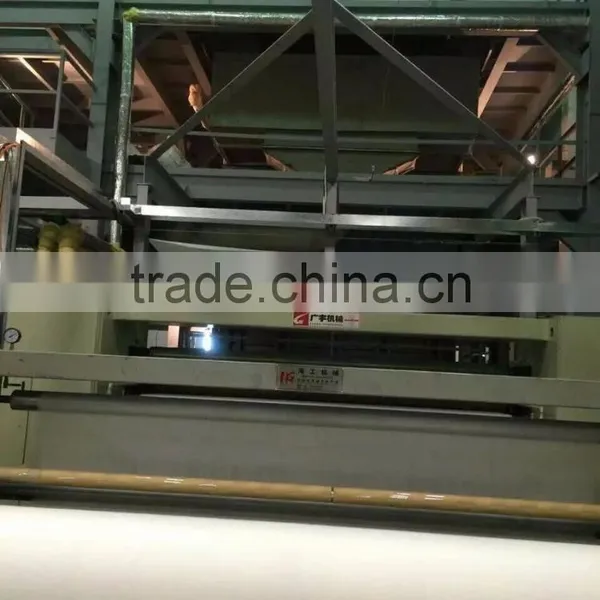

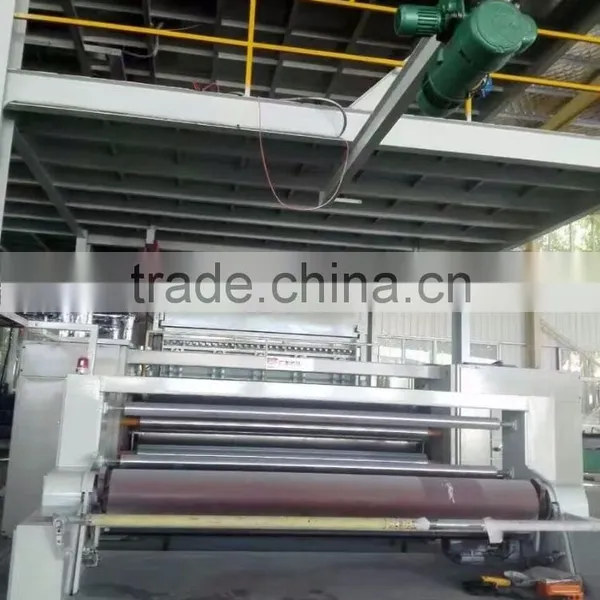

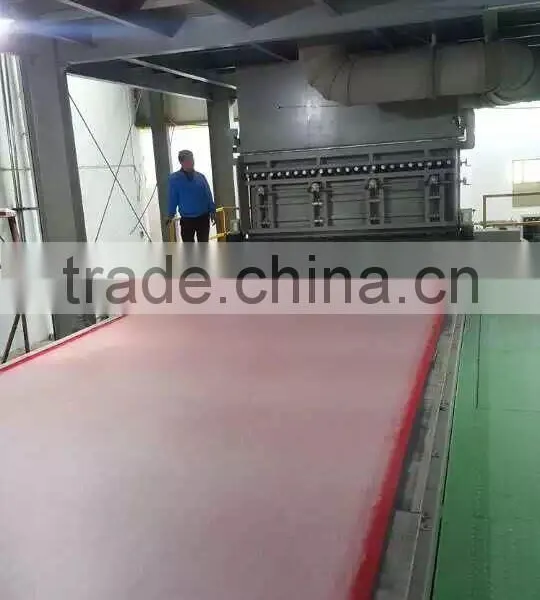

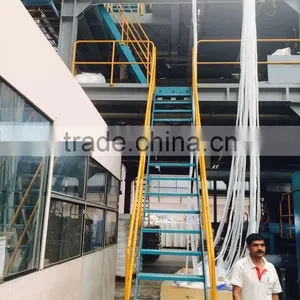

1600M PP SPUNBOND NONWOVEN FABRIC MAKING MACHINE
| Model | 1600mm |
| Daily Output | 5 Tons |
| Width Of Fabric | 1600mm |
| Anual Output | 1500T |
| Container Request | 3x40HQ |
| Weight | 80 Tons |
| Size Of Machine | 18mx8.5mx12m |
| Port Of Loading | ShangHai or ningbo |
|
REMARKS: EMBOSSING ROLLERS WITH POINT PATTERN, CROSS PATTERN OR LINE PATTERN CAN BE MADE-TO-ORDER. ADJUSTABLE RANGE OF WEIGHT/S.Q.M: 9-200G/S.Q.M |
Techniques And Flow Chart
Crack pulling techniques
Flow chart: addictive(edge-recycling)
Fully new machine, equipment list will be provided if needed.

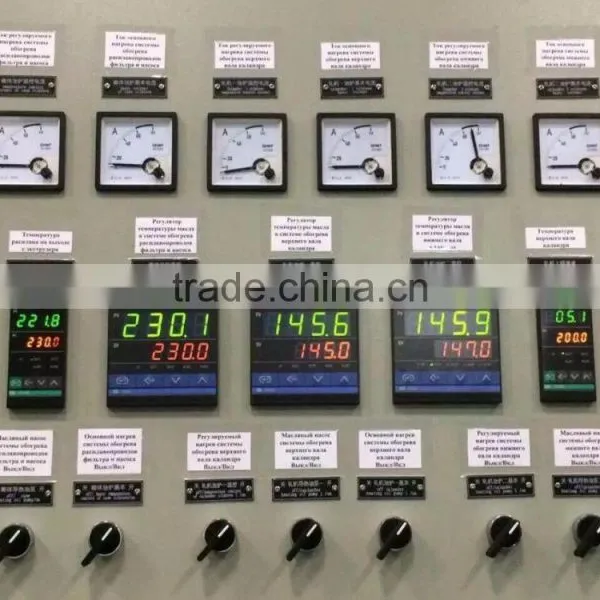

Electrical Control System
Screw adopts DC motor control system.
Pump adopts AC control system.
Blow and suck machine adopts AC control system.
Web machine, calendar machine, slitting machine adopts DC control system
Production line adopts PLC control, operation button located on the control cabinet.
Additonal Information
Payment: 30% advance paid whitin 3 days after the contract sign,70% banlance paid before delivery.
Delivery:Whitin 90 days after recevied the deposit,we will send the engineers to customer's country for installnation and test running.
Warranty:One year wanrranty(the buyer will pay for the changed parts excluding service charge.
Installation:
The seller take the reponsibility of installation with the buyer's assitances.The seller will send 5-6 engineers to installate the machine, the buyer shoule take the charge of the engineers'accommodation cost,the seller should arrange some worker for assitance. The buyer take the charge of the hoist,forklift during lifting the equipment.
One year warranty
2-4 techinicans will service the customer for free, showing how to operatingthe euipment and explain the operating theory till the customers' workers can operate the equipment by theirselfs.It's available to contact the engineer if any inquiry. We will provide the techinical surport and also will send the techinicans to customers' factory, if there are some unsolvable difficulties or any malfunction during the producig.The round-trip fee charge and the local accommodation expenses should be taken on by the buyer.
Our Selling Points
Intergrates design,processing,installation and technical reform.
Wel-structured and easy operate.
The whole line is automated.
Strong after-sale service.
| General introduction for PP spunbonded nonwoven machine | |||||||||
| Machine Type | Output (mt/y) |
Effective width(mm) |
Weight (GSM) |
Filament Denier(Dan) |
Machine Speed (m/Min) |
Power Consumption |
Machine Size (L*W*H) |
Screw diameter(mm) |
Length-diameter ratio |
| S1.6M | 1500 | 1600 | 9-150 | 1-3 | 10-120 | 800kwh/ton | 20m*8m*11m | 130-170 | 30:1 |
| S1.8M | 1600 | 1800 | 20m*9m*11m | ||||||
| S2.4M | 2200 | 2400 | 20m*10m*11m | ||||||
| S3.2M | 3000 | 3200 | 20m*12m*11m | ||||||
| SS1.6M | 2700 | 1600 | 15-150 | 1-3 | 15-200 | 800kwh/ton | 25m*10m*11m | 130-170 | 30:1 |
| SS1.8M | 2900 | 1800 | 25m*11m*11m | ||||||
| SS2.4M | 4100 | 2400 | 25m*12m*11m | ||||||
| SS3.2M | 5700 | 3200 | 25m*14m*11m | ||||||
| SMS1.6M | 2500 | 1600 | 15-150 | 1-3 | 150-250 | 2500kwh/ton | 30m*15m*11m | 130-170 | 30:1 |
| SMS1.8M | 2800 | 1800 | 30m*15m*11m | ||||||
| SMS2.4M | 3200 | 2400 | 30m*16m*11m | ||||||
| SMS3.2M | 4800 | 3200 | 30m*17m*11m | ||||||
| Raw Material Specification | ||
| Item | Unit | Technical index |
| Melting Index | g/10min | 27-35 |
| Melting point | °C | 162-165 |
| Density | g/cm3 | 0.90-0.91 |
| Molcular Wight distribution |
Mw/Mn | ≤4 |
| Content of grey | PPm | ≤250 |
| Noequal normality | % | ≤3.5 |
| Content of water | % | ≤0.05 |
| Stretch strength | Mpa | ≥31 |
Fabric Usage:
--Medical Protect
Wound Care Bandage & Gauze, Hospital Gowns & Patient Drapes, Face Masks, Protective Apparel
--Hygiene
Baby Diapers & Training Pants, Adult incontinence Briefs, Underwear, Femcare Napkins, antyliners and Tampons
--Packing and Industry
Shopping bag,tarpauins,tents,bag for rice/sugar,luggage,vacuum cleaner bag,buff pad,interlining and cloth,shoulder padding etc.
--Argriculture:
Cover tree,cope cover,garden cover ect.
