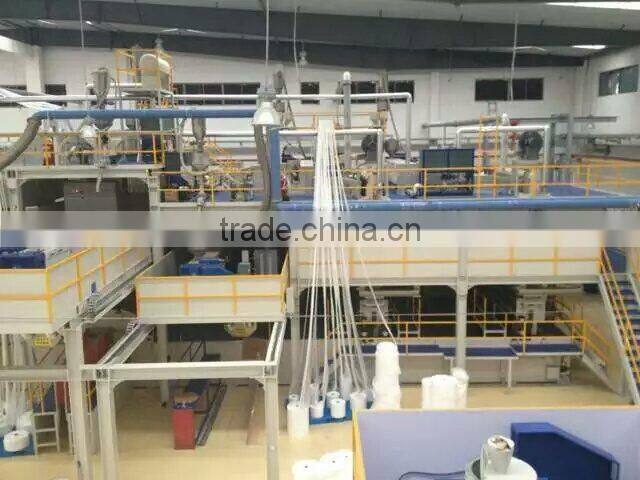

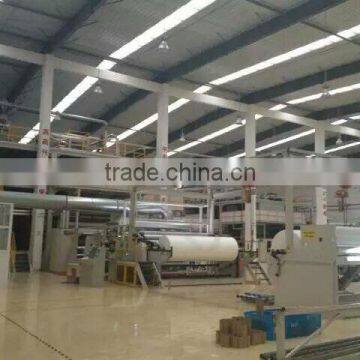

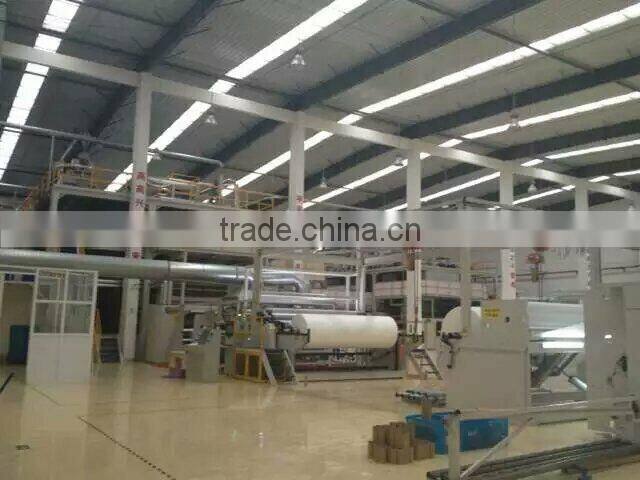

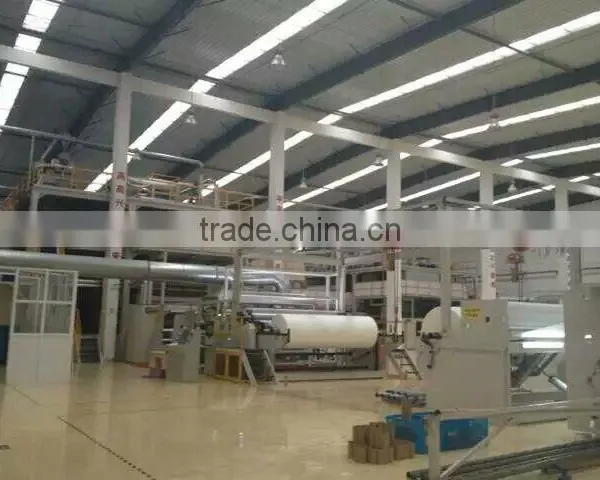

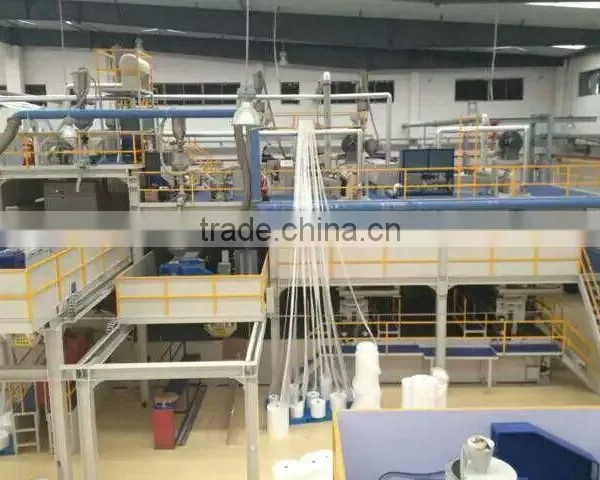

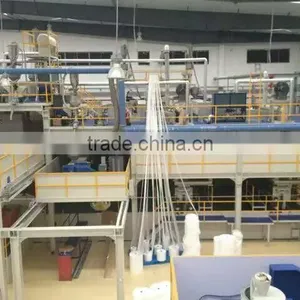

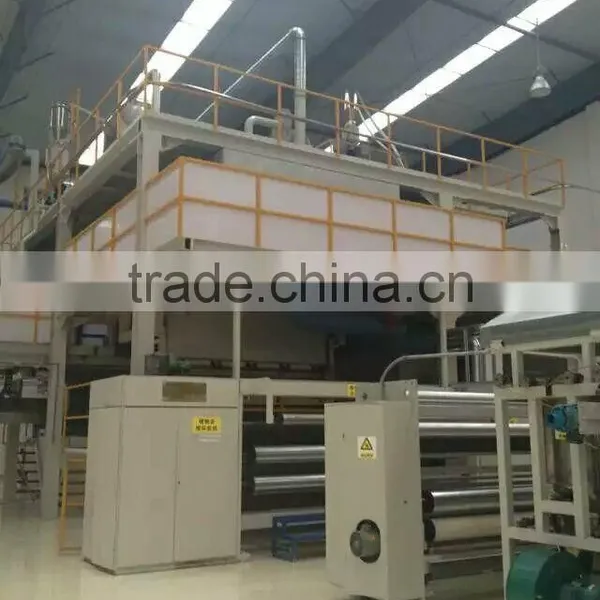

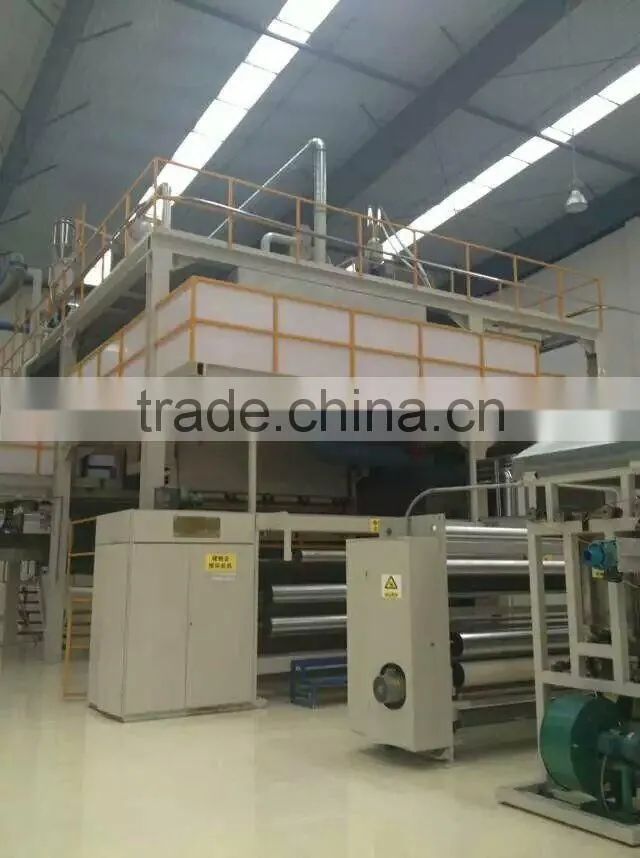

1600mm Spunbond nonwoven fabric making machine
APPENDIX 1 PP1600S SPECIFICATION NAME OF EACH PART
TECHNICAL PARAMETER
SCOPE OF SUPPLY
QTY.
1. Spunbond Part 1.1Vacuum Feeder
feeding capacity
500kg/h;HG NONWOVEN
1SET;
motor power
7.5kw*11.2Masterbatch Dosing Unit
color matching
1%~5%;HG NONWOVEN
1SET;motor power
0.55kw(43/1)*3;1.3Screw Extruder
model
φ130; 30:1;Jin hu
1SET;
transmission motor
Siemens AC 75kw*1;
1.4Co-Extruder
model
φ105; 15:1;Jin hu
1SET;
transmission motor
Siemens AC 18.5kw*1;
feeding motor
0.55kw(35/1)*1;1.5Melting Filter
type
cartridge
HG NONWOVEN
1SET;
filtration area
2.5 M2heating medium
oil heating/ conducting oil;
1.6Metering Pump
model
200cc;HG NONWOVEN
1SET;Max. speed
35RPM;motor power
5.5kw(35/1)*1;1.7Spinning Beam
material
casing pipeHG NONWOVEN
1PC;
heating medium
oil heating/ conducting oil;
temperature
Max. heating: 250 ℃1.8Monomer Suction Device
speed
3000RPMHG NONWOVEN
1SET;
motor power
Siemens/Beide AC 5.5kw*1;
1.9Spinneret
material
precision heat-resistant steel;
wu zhong
2PC;
size
L1910mm*W216mm; hole diameter
45S;hole quantity
10000~11000;1.10Cooling Air Box
model
1600mm;HG NONWOVEN
1SET;material
5mm aluminium plate;
1.11Upper Stretching Devicemodel
1600mm;HG NONWOVEN
1PC;
raw material
toughened glass;
Stainless steel
total air flow
12000 m3/h;
1.12Lower Stretching Device
model
1600mm;HG NONWOVEN
1PC;
material
toughened glass;
Stainless steel
total blowing rate
12000 m3/h;
1.13PLC Electric Control
cabinet group qty
4 groups for spunbond
HG NONWOVEN
1SET;
PLC model
Siemens S7-300;
2. Meltblown Part 3. Fabric Forming Part 3.1Web Forming Machine
process speed
9~150m/min;HG NONWOVEN
1PC;
motor power
Eurotherm 7.5kw*1 DC motor
thickness
40mm;3.2Thermobonded Calender
process speed
9~150m/min;changzhou-China
1PC;
motor power
Eurotherm 22kw*1 DC motor
roller size
L:2000mm;D:420mm;
heating method
oil heating;
3.3Tension Frame Device
model
1600mm;HG NONWOVEN
1PC;
type
automatic adjustment;
3.4Auto Winder Machine
driving roller
2100mm;HG NONWOVEN
1PC;
motor power
AC 5.5kw*1;
flatulence axis
3 pcs;
wind diameter
Max: 1200mmwind weight
Max: 550kg;3.5Rolling Back Machine
model
1600mm;HG NONWOVEN
1PC;
type
linkage roll back;
3.6Slitter&Cutter
motor power
AC 5.5kw*1;
HG NONWOVEN
1PC;
running speed
Max. 200m/mindriving roller
120mm seamless steel pipe;
roller material
stainless steel
wind diameterMax: 1200mm4. Heating System 4.1Oil Heating Furnace
type
oil heating;
HG NONWOVEN
3PC;
heating target
spinning beam and calender;
motor power
48kw*34.2Heating Oil Pipeline
-----------------------------------------1SET;
4.3Heat insulation material
-----------------------------------------1SET;
5. Cooling System 5.1Chiller/Refrigerating Unit
cooling capacity
100000 Calories*1
CARRIER
1SET;
5.2Air Conditioning Box
cooling capacity
100000 Calories*1
HG NONWOVEN
1PC;
total blowing rate
10000~12000m3/h;
5.3Cooling Air Blower
speed
1450RPMHG NONWOVEN
1PC;
motor power
Siemens/Beide AC 30kw*1;
total blowing rate
12000 m3/h;
5.4Air Suction Blower
speed
1450RPMHG NONWOVEN
1PC;
motor power
Siemens/Beide AC 30kw*1pc;
5.5Cooling Tower
total circulating
water 40T/HHG NONWOVEN
1PC;
cycling water
pressure 25 ℃, 0.2~0.35Mpa;circulated system
made of glassed fiber;
5.6Cycling Water Pump
motor power
5.5kw*2pc;HG NONWOVEN
2PC;
5.7Air Duct
shape
round HG NONWOVEN
1SET;
5.8Air Pipeline
material
1mm galvanized iron plate
HG NONWOVEN
1SET;
5.9Water Pipeline
material
89mm galvanized pipe
HG NONWOVEN
1SET;
5.10Cool insulation material
cooling target
air and water pipeline;
HG NONWOVEN
1SET;
6. Module Preparation Module 6.1Vacuum calcinator
cleaning target
spinneret
HG NONWOVEN
1PC;
motor power
38kw*1;6.2Ultrasonic Cleaner
material
thickened stainless steel
importedHG NONWOVEN
1PC;
motor power
0.5kw*1;Max. temperature
110 ℃7. Other Module 7.1Conveyor Belt
size
L*W:10.8M*2.05M
HG NONWOVEN
2PC;
type
seamless;

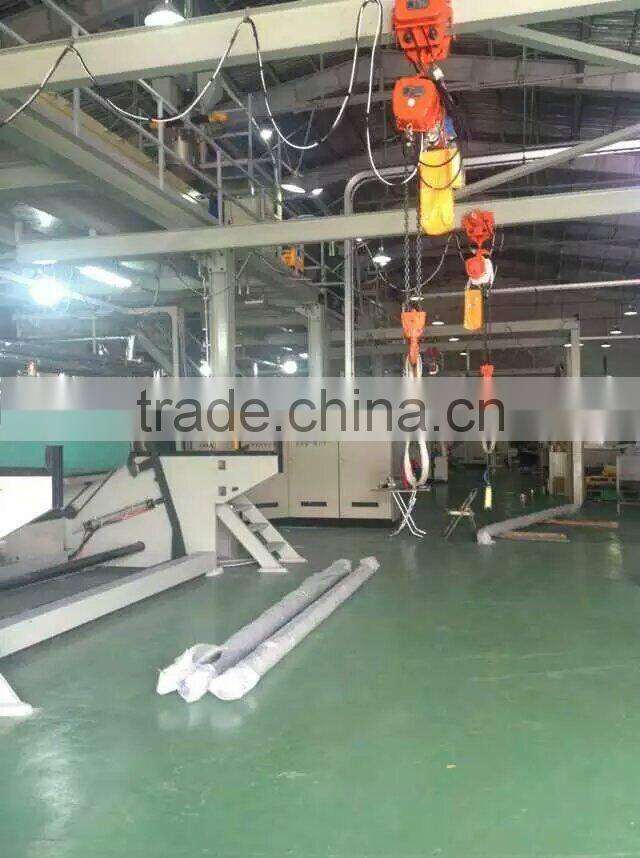

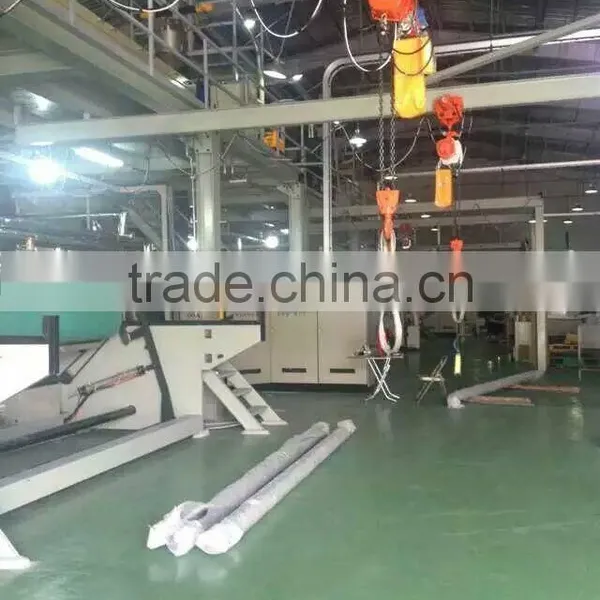

7.2Electric Hoist
loading capacity
1 T HG NONWOVEN
1PC;
7.3Steel Platform
material
400# H beams
300# beams
16# channel
80# channel
200# channel
4mm pattern steel HG NONWOVEN
1PC;
7.4Air Compressor
motor power
7.5kw*1;1.2MP;HG NONWOVEN
1PC;
7.5Inverter
-----------------------------------------SIEMENS-German
1SET;
7.6DC digital converter
type
SSD 590;Eurothern-UK
1PC;
7.7Thermostat
-----------------------------------------RKC-JAPAN
1PC;
7.8Pressure Sensor
type
RKC-F900RKC-JAPAN
1PC;
