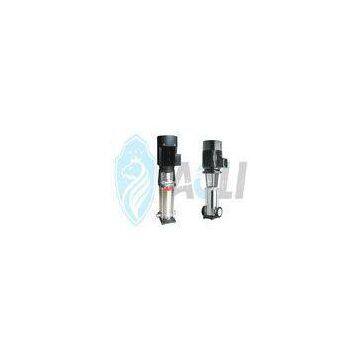

Agriculture Vertical Multistage Centrifugal Pump In Farmland Spray Dripping Irrigation
Overview:
The ALDT, ALDF series pumps are vertical multistage, single suction pipeline pumps. With the stainless steel outer cylinder and wearablemachine seal, thus they have the features of no leakage and a long life expected. The products take up very small floor to install and operate smoothly andquietly and importantly they are also the new high-effective energy-saving pumps. These vertical multi-stage, single suction, pipeline pumps are used for watersupply of residential areas and commercial facilities such as hospitals, hotelsand business buildings, as well as for cooling circulation of air-conditioning systems.
e.
Features:
1. Vertical structure, the inlet and outlet flange are in a line, compact structure and saving space, easy to maintain.
2. Mechanical seal, it is safe to install and maintain;
3. Motor shaft and the pump shaft linked directly by a coupler;
4. Ss304 material adopted for the water flow parts, won’t pollute the medium transported;
5. Durable and beautiful
6. Low noise and standard design for wide use.
7. Motor:protection class:IP55,insulation class:F.
ioning systems.
Usage:
Common type is applicable for liquid conveying, circulation and boosting of hot and cold clean water, soft water.
Stainless steel type is also used for water with tiny content of alkali, mineral, distilled water, water for swimming pool and solution with chloride, but the allowed temperature of the liquid shall be reduced.
Model Meaning:
Data of Parameters:
| Model | power (kW) |
Rated Flow (m3/h) |
Rated Head (m) |
Speed r/min |
| ALDT 20-6 | 7.5 | 20 | 70 | 2900 |
| ALDT 20-7 | 7.5 | 20 | 82 | 2900 |
| ALDT 20-8 | 11 | 20 | 94 | 2900 |
| ALDT 20-10 | 11 | 20 | 118 | 2900 |
| ALDT 20-12 | 15 | 20 | 142 | 2900 |
| ALDT 20-14 | 15 | 20 | 166 | 2900 |
| ALDT 20-17 | 18.5 | 20 | 202 | 2900 |
| ALDT 32-10-1 | 1.5 | 32 | 9 | 2900 |
| ALDT 32-10 | 2.2 | 32 | 13 | 2900 |
| ALDT 32-20-2 | 3 | 32 | 20 | 2900 |
| ALDT 32-20 | 4 | 32 | 27 | 2900 |
| ALDT 32-30 | 5.5 | 32 | 40 | 2900 |
| ALDT 32-40 | 7.5 | 32 | 53 | 2900 |
| ALDT 32-50 | 11 | 32 | 67 | 2900 |
| ALDT 32-60 | 11 | 32 | 81 | 2900 |
| ALDT 32-70 | 15 | 32 | 95 | 2900 |
| ALDT 32-80 | 15 | 32 | 109 | 2900 |
| ALDT 32-90 | 18.5 | 32 | 124 | 2900 |
| ALDT 32-100 | 18.5 | 32 | 138 | 2900 |
| ALDT 32-110 | 22 | 32 | 153 | 2900 |
Packing In Plywood Carton:
** Providing more details about your requirement such as flow, head, motor, medium and the like, you will get more correct products and price.
"User is always God" is the core of Aoli's customer service by giving priority to users so that we solve problems first but analyze liabilities for accidents afterwards.
