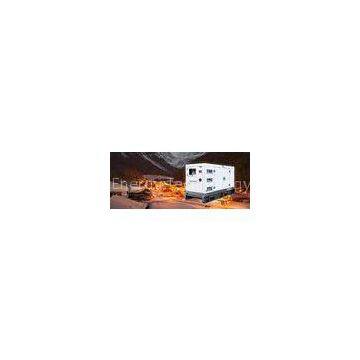

Perkins Diesel Generator Set , Perkins 10KVA Diesel Generator Low Noise
Features:
1. High fuel efficiency:
Fewer fuel consumption at leading level than other competitive products.
2. The turbocharger with waste gated design:
Optimizes operation across the torque curve resulting in excellent low-end torque.
3. Compacted yet durable and dependable engine:
Cummins engines contain up to 40% fewer parts than competitive engines in its class.
This results in a better power-to-weight ration, a less chance of failure and lower repair cost.
4. Advanced design and manufacturing:
Make the engine delivers superior performance and lower cost than competitive engines.
5. Excellent cold start performance:
Optional assistant cold starter with improved 6.6KW starter and intake air heater.
6. Excellent performance and advantage:
Adopt advanced design to achieve higher horsepower and lower weight.
Why Most Customers Choose Smartslink ?
Answer:
1. Smartslink Brand Diesel Generators
2. Middle-high Positioning;
3. 20-25days Lead-time;
4. Designed by CAE and CAF Software;
5. Got the ISO and CE certificate with OEM capability;
6. With the best service and low cost can help you get win out from competitors in your market;
7. Cummins, Perkins, Detuz etc. famous engine brands optional;
8. Multiple choice:Open,Soundproof Canopy,Container,Trailer etc
Detailed Description:
| 1. Specification of genset | ||||||||||
| Gensets model | P13S | |||||||||
| Prime power (KW/KVA) | 10/13 | |||||||||
| Stand power (KW/KVA) | 11/14.3 | |||||||||
| Fuel Tank Capacity (L) | 60 | |||||||||
| Dimensions L*W*H | 1550*740*950 | |||||||||
| Weight(KG) | 670 | |||||||||
| Rated Voltage | 380/220V | |||||||||
| Rated frequency(HZ) | 50 | |||||||||
| Rated Speed | 1500rpm | |||||||||
| Power Factor(COS￠) | 0.8(lagging) | |||||||||
| 2. Specification of diesel engine | ||||||||||
| Engine brand | Perkins | |||||||||
| Engine model | 403A-15G1 | |||||||||
| Number of Cylinders | 3 | |||||||||
| Cylinder arrangement | Vertical in-line | |||||||||
| Cycle | Four stroke | |||||||||
| Aspiration | Turbocharged, air-air after-cooled | |||||||||
| Bore×Stroke (mm×mm) | 84mm /90mm | |||||||||
| Displacement (Liters) | 1.5 | |||||||||
| Compression Ratio | 23.5:1 | |||||||||
| Speed Governor | Electronic | |||||||||
| Cooling System | Forced Water Cooling Cycle | |||||||||
| Total lubrication system Min.capacity (L) | 4.9 | |||||||||
| Fuel Consumption at 100% Load (L/h) | 3.5 | |||||||||
| Starting Method | DC24V electrical starting | |||||||||
| 3. Specification of alternator | ||||||||||
| Alternator brand | Leroy-Somer | |||||||||
| Alternator model | LSA 40VS1 | |||||||||
| Number of Phase | 3 | |||||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||||
| Number of Bearing | 1 | |||||||||
| Protection Grade | IP23 | |||||||||
| Altitude | ≤1000m | |||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||||
| Insulation Class | H | |||||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||||
