Home > Products > Lampholder Gauge > IEC60061-3: 7006-26-4 E14 Not Go Gauges for Screw Threads of Lampholders

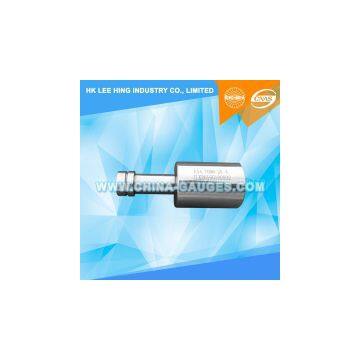

IEC60061-3: 7006-26-4 E14 Not Go Gauges for Screw Threads of Lampholders
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
IEC60061-3: 7006-31-4 E14 Gauge for Tesing Contact-Making and Protection Against Accidental Contact During Insertion of Lamps in Lampholders
-
IEC60061-3: 7006-30A-1 Plug Gauge for Lampholder E14 With Candle Shaped Shaft for Candle Lamps for Testing Contact Making
-
IEC60061-3: 7006-30-2 Plug Gauge for E14 Lampholder for Testing Contact Making
-
IEC60061-3: 7006-26-4 E27 Not Go Gauges for Screw Threads of Lampholders
-
IEC60061-3: 7006-25A-2 E27 Go Gauge for Lampholders
-
IEC60061-3: 7006-25-7 E40 Go Gauges for Screw Threads of Lampholders
Product Details
| Brand Name | Julixing | Place of Origin | China | |
| Model Number | 7006-26-4 |
Product Description
IEC60061-3: 7006-26-4 E14 Not Go Gauges for Screw Threads of Lampholders
The drawing is intended only to illustrate the essential dimensions of the gauge.
For details of screw thread of lampholders E10, EP10, EY10, E14, E27, E39 and E40, see sheets 7004-22, 7005-30, 7005-7, 7004-23, 7004-21, 7005-24A and 7004-24 respectively.
PURPOSE: To check the maximum minor diameter of the screw thread, dimenaion D1, of lampholders E10, EP10, EY10, E14, E27, E39 and E40.
TESTING: The screw thread of the lampholder shall be assumed to be correct if the gauge does not enter by its own weight so far that the thread protrudes beyond surface T.
* For cetring purposes only
