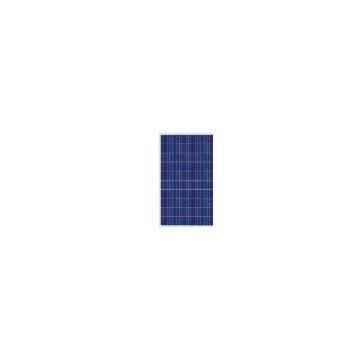

Solar Big Module--QXC 220W/30V

Send Inquiry to This Supplier

ITEM NO.:	SL220CE-30P
Maximum Power(W)	220	210	200
Optimum Power Voltage(Vmp)	29.28	29.28	29.28
Optimum Operatige Current(Imp)	7.51	7.17	6.83
Open Circuit Voltage(Voc)	36.0	36.0	36.0
Short Circuit Current(Isc)	8.03	7.67	7.31
Solar Cell:	156*156 Poly
Number of Cell(pcs)	6*10
Brand Name of Solar Cells	----Cell
Size of Module(mm)	164098040
Caple & Connector Type	Pass the TUV Certificate
Frame(Material Corners,etc.)	Aluminium-alloy
Backing (Brand Type)	TPT
Cell Efficiency for 220W(%)	15
Weight Per Piece(KG)	18.96
FF (%)	70-76%
Junction Box Type	Pass the TUV Certificate
Tolerance Wattage(e.g.5%)	±5%
Front Glass Thikness(mm)	3.2
Temperature Coefficients of Isc(%)	+0.04
Temperature Coefficients of Voc(%)	-0.38
Temperature Coefficients of Pm(%)	-0.47
Temperature Coefficients of Im(%)	+0.04
Temperature Coefficients of Vm(%)	-0.38
Temperature Range	-40°C to +85°C
Surface Maximum Load Capacity	2400Pa
Allowable Hail Load	23m/s ,7.53g
Bypass Diode Rating(A)	12
Warranty	90% of 10 years,80% of 25 years.
Standard Test Conditions	AM1.5 1000W/ 25 2°C
Packing
1*20'	14 Pallets / 316pcs
1*40'STD	28 Pallets / 756pcs
