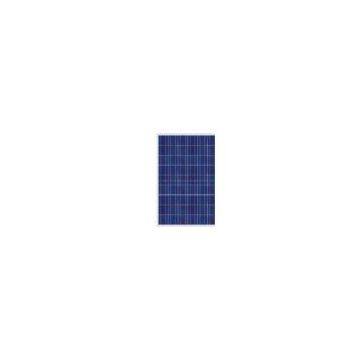

Name: Solar Big Module--QXC 180W/27V
SKU: 154369524
Availability: InStock

ALL CATEGORIES

Solar Big Module--QXC 180W/27V

Send Inquiry to This Supplier

ITEM NO.:	SL180CE-27P
Maximum Power(W)	180	170	160
Optimum Power Voltage(Vmp)	26.35	26.35	26.35
Optimum Operatige Current(Imp)	6.83	6.45	6.07
Open Circuit Voltage(Voc)	32.4	32.4	32.4
Short Circuit Current(Isc)	7.31	6.90	6.49
Solar Cell:	156*156 Poly
Number of Cell(pcs)	6*9
Brand Name of Solar Cells	----Cell
Size of Module(mm)	148598040
Caple & Connector Type	Pass the TUV Certificate
Frame(Material Corners,etc.)	Aluminium-alloy
Backing (Brand Type)	TPT
Cell Efficiency for 180W(%)	13.75
Weight Per Piece(KG)	17.8
FF (%)	70-76%
Junction Box Type	Pass the TUV Certificate
Tolerance Wattage(e.g.5%)	±5%
Front Glass Thikness(mm)	3.2
Temperature Coefficients of Isc(%)	+0.04
Temperature Coefficients of Voc(%)	-0.38
Temperature Coefficients of Pm(%)	-0.47
Temperature Coefficients of Im(%)	+0.04
Temperature Coefficients of Vm(%)	-0.38
Temperature Range	-40°C to +85°C
Surface Maximum Load Capacity	2400Pa
Allowable Hail Load	23m/s ,7.53g
Bypass Diode Rating(A)	12
Warranty	90% of 10 years,80% of 25 years.
Standard Test Conditions	AM1.5 1000W/ 25 2°C
Packing	22pcs/Pallets for STD , 27pcs/Pallets for 40'HQ
1*20'	14 Pallets / 364pcs
1*40'STD	30Pallets /810pcs
