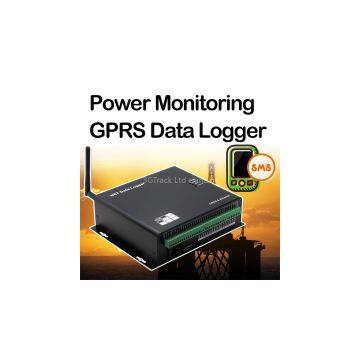

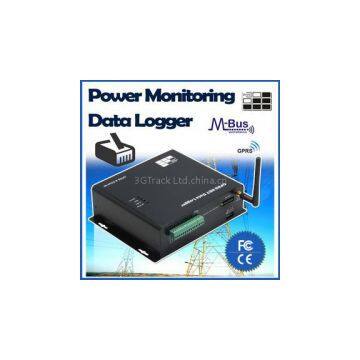

GS828-NS2 is a GPRS NETData Logger supporting Modbus protocol devices.It uploads power transducerreading on schedule or alarm via GPRS, SMS, Ethernet.
It is a GPRS NET Data Logger supporting Modbus devices as master mode.
It reads data from Modbus device, logs into internal memory and uploads by GPRS, SMS, Ethernet.
During power loss, operation is backed up internal rechargeable battery.
Overview:
* RS485 Modbus Interface
* AC or DC Power Transducer
* 6 Analog Channels
* 10 Digital Inputs
* 2 Pulse Channels
* 4 Digital Outputs
Its internal 4MB memory logs more than half year data.
Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power.
Flexible data logging interval starts from 1 minute up to 24 hours.
Features
1) Real Time GPRS, SMS and Ethernet Data Upload
2) Integrated 16 bit MCU & Siemens GPRS Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via network by PC software
6) Remote Setup by SMS, GPRS or Ethernet
7) RS485 Port support data capturing in Modbus protocol
8) Support Dynamic Domain Name or Fixed IP, UDP / TCP protocol data transmission
9) AC/DC power with internal battery backup
10) Direct connection to AC/DC power transducer
Free Software:
[1] Data Logger Setup software is bundled for routine configuration via SMS remotely, or via Ethernet port
[2] Data Logger Centre software is also provided for receiving data via GPRS and Ethernet
[3] UDP/TCP Testing Tool is provided for easy communication testing and user development
[Applications]
* water pump power monitoring system
* oil/gas pipes network, pump stations
* solar / wind power generating plant monitoring system
* power line wireless monitoring system
* remote Industrial Equipment Monitoring
* rural Equipment Monitoring e.g. Power Plant
