Ricardo Diesel Generator 120KW/150KVA Hot Sales

Ricardo Diesel Generator 120KW/150KVA Hot Sales thumbnail-1

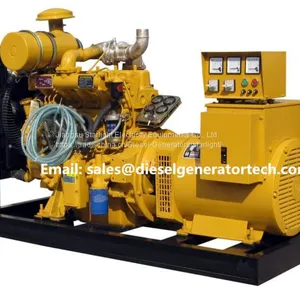

Ricardo Diesel Generator 120KW/150KVA Hot Sales thumbnail-2
Ricardo Diesel Generator 120KW/150KVA Hot Sales photo-1

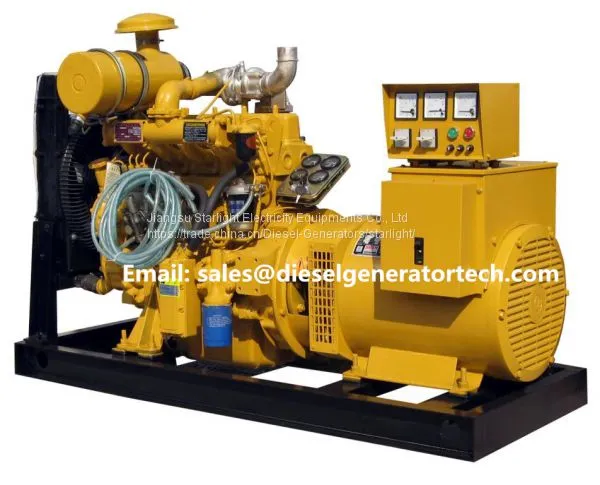

Ricardo Diesel Generator 120KW/150KVA Hot Sales photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Shuang Tong
Place of Origin:
China
Model Number:
XG-120GF
Contact Supplier Request Quote Chat Now
Guangxi Dingbo Generator Set Manufacturing Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shuang Tong
Place of Origin China
Model Number XG-120GF
Rated Current 196(A)
Output Type AC Three Phase
Speed 1500（r/min）
Frequency 50(Hz)
Rated Voltage 400/230(V)
Rated Power 120KW

Diesel Generator Set Data


Manufacturer: Jiangsu Starlight Generating Equipments Co.,Ltd

Set Type: XG-120GF

Standby Power:  120KW/150KVA

Prime Power: 109KW/136KVA

Rated Current: 196(A)

Rated Frequency:50 （Hz）

Start-up time: 5～6（s）

Power Factor: 0.8（Lag）

Rated Voltage: 400/230（V）


Standard Features


Engine: RICARDO  R6105AZLD-1

Radiator 50℃ max

Fans are driven by belt, with safety guard

24V charge alternator

Dry type air filter, fuel filter, oil filter

Alternator: single bearing alternator

IP22, insulation class H/H

Main line circuit breaker

Standard control panel

Absorber

Muffler

User manual


Diesel Engine Data


Manufacturer:  RICARDO Engine Co

Model: R6105AZLD-1

Prime /Standby Power: 110KW/121KW

Rated Speed: 1500（r/min）

Cycle: 4 stroke

Cylinder Arrangement: 4 in line

Displacement: 6.75L

Bore and Stroke: 105*130（mm）

Compression Ratio: 16:1

Governor Type: Mechanical

Start battery voltage: 24V DC

Air Intake System


Air Intake System: Turbo

Max Intake Restriction: 6.2kPa

Burning Capacity: 8.5m3/min

Air Flow: 210m3/min

Exhaust System


Exhaust Gas Flow:  19.8m3/min

Exhaust Temperature: ≤600℃

Max Back Pressure: 4kpa


Fuel System


Fuel System: Direct Injection

100%( Prime Power) Load: 218g/kwh


Oil System


Total Oil Capacity: 17L

Oil Consumption: ≤2.04g/kwh

Oil Pressure at Rated RPM: 0.30-0.50MPa


Cooling System


Cooling Way: Water-cooled

Total Coolant Capacity: 32L

Max Water Temperature: 98℃


Alternator Data


Manufacturer: STARLIGHT/STAMFORD /SIEMENS/MARATHON /ENGGA/KEPU

Excitation Mode:Br ushless self-excitation

Number of phase and Access Act: 3-phase 4-wire

Connecting Type: "Y" type connecting

Alternator Capacity: 150KVA

Alternator Efficiencies: 95％

Overload:（PRP）110% load can run 1h

Protection Level: IP22-IP23

Insulation Class, Temperature Rise: H/H

Telephone Influence Factor (TIF): ＜50

THF: ＜2%

Voltage Regulation, Steady State: ≤±1%

Altitude: ≤1000m
