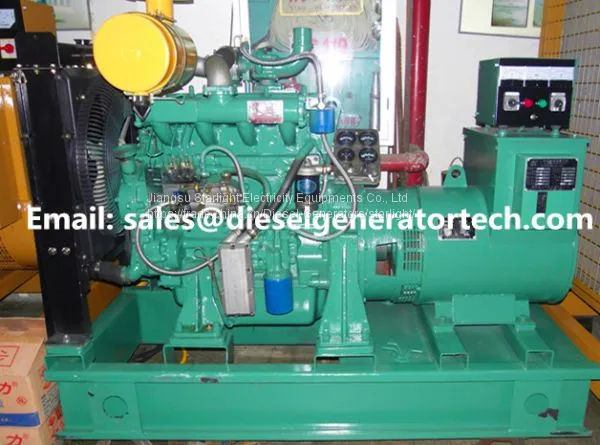

Low Power Diesel Power Generator Ricardo Open Type Generator Set 75KW for Sales

Diesel Generator Set Data

Manufacturer: Jiangsu Starlight Generating Equipments Co.,Ltd

Set Type: XG-50GF

Standby Power: 50KW/62.5KVA

Prime Power: 45KW/57KVA

Rated Current:  82(A)

Rated Frequency: 50（Hz）

Start-up time: 5～6（s）

Power Factor: 0.8（Lag）

Rated Voltage: 400/230（V）

Standard Features

Engine: RICARDO  R4105ZD

Radiator 50℃ max

Fans are driven by belt, with safety guard

24V charge alternator

Dry type air filter, fuel filter, oil filter

Alternator: single bearing alternator

IP22, insulation class H/H

Main line circuit breaker

Standard control panel

Absorber

Muffler

User manual

Diesel Engine Data

Manufacturer:  RICARDO Engine Co

Model: R4105ZD

Prime /Standby Power: 56KW/61.6KW

Rated Speed: 1500（r/min）

Cycle: 4 stroke

Cylinder Arrangement: 4 in line

Displacement: 4.33L

Bore and Stroke: 105*125（mm）

Compression Ratio: 16:1

Governor Type: Mechanical

Start battery voltage: 24V DC

Air Intake System

Air Intake System: Naturally aspirated

Max Intake Restriction: 6.1kPa

Burning Capacity: 7.3m3/min

Air Flow: 184m3/min

Exhaust System

Exhaust Gas Flow:  13.98m3/min

Exhaust Temperature: ≤600℃

Max Back Pressure: 3kpa

Fuel System

Fuel System: Direct Injection

100%( Prime Power) Load: 231g/kwh

Oil System

Total Oil Capacity: 13L

Oil Consumption: ≤2.04g/kwh

Oil Pressure at Rated RPM: 0.30-0.50MPa

Cooling System

Cooling Way: Water-cooled

Total Coolant Capacity: 30L

Max Water Temperature: 98℃

Alternator Data

Manufacturer: STARLIGHT/STAMFORD /SIEMENS/MARATHON /ENGGA/KEPU

Excitation Mode: Brushless self-excitation

Number of phase and Access Act: 3-phase 4-wire

Connecting Type:“Y” type connecting

Alternator Capacity: 62.5KVA

Alternator Efficiencies: 95％

Overload:（PRP）110% load can run 1h

Protection Level: IP22-IP23

Insulation Class, Temperature Rise: H/H

Telephone Influence Factor (TIF): ＜50

THF: ＜2%

Voltage Regulation, Steady State: ≤±1%

Altitude: ≤1000m
