Home > Consumer Electronics > LED Display > Indoor LED Display > VSCEL SFP + Optical Transceiver SFP-10G-SR , 10G Small Form Factor Pluggable Module

VSCEL SFP + Optical Transceiver SFP-10G-SR , 10G Small Form Factor Pluggable Module

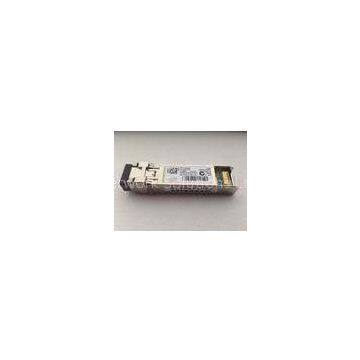

VSCEL SFP + Optical Transceiver SFP-10G-SR , 10G Small Form Factor Pluggable Module thumbnail-1
VSCEL SFP + Optical Transceiver SFP-10G-SR , 10G Small Form Factor Pluggable Module photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
PrimusIT, OEM
Place of Origin:
China
Model Number:
PTR-10GL-SR
Contact Supplier Request Quote Chat Now
Primus Network Solutions Ltd,
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name PrimusIT, OEM
Place of Origin China
Model Number PTR-10GL-SR
Delivery Time:Within 1-3 working days after PO confirmed
Certification:CE/FCC/RoHS/TUV/UL

VSCEL SFP + Optical Transceiver SFP-10G-SR , 10G Small Form Factor Pluggable Module

850nm VSCEL SFP + Optical Transceiver , 10 Gigabit Small Form Factor Pluggable Module

Specification:

P/N SFP-10G-SR
Datarate 10G/ps
Distance 300M
Wavelenght 850nm
Transmitter VSCEL
Receiver PIN
Media MMF
DDM/DOM YES
Connector LC
Application Datacom 10G Ethernet/ 2x 4x 8x FC
Operating Temperature 0℃~ +70℃
Voltage Supply 3.3V
Certification CE/FCC/RoHS/TUV/UL
Brand PrimusIT, OEM

SFP-10G-SR Description:

10GBASE-SR SFP+ transceiver module for MMF, 850-nm wavelength, LC duplex connector

The PrimusIT SFP-10G-SR 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor

Supports 10GBASE Ethernet and OTU2/OTU2e

Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports \"pay-as-you-populate\" model. Supports digital optical monitoring capability

Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link.

SFP-10G-SR Features:

1. 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR

2. Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”

3. 850nm VCSEL transmitter, PIN photo-detector

4. 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

5. Operating case temperature: 0 to 70°C

6. ll-metal housing for superior EMI performance

7. Low power consumption

8. Advanced firmware allow customer system encryption information to be stored in transceiver

9. Cost effective SFP+ solution, enables higher port densities and greater bandwidth

10. RoHS compliant

Applications:

High-speed storage area networks

Computer cluster cross-connect

Custom high-speed data pipes

SFP-10G-SR Competitive advantage:

1. Excellent quality and 3 years warranty

2. Competitive pricing

3. Full compatible (CISCO/HP/Juniper/H3C/Extreme…)

4. OEM/ODM Customized label

5. Keep stock,Fast delivery.
