Home > Products > Electronic Buzzer > 3.6V Vibration SMD Piezo Transducer , Piezoelectric Transducer L8.5mm*W8.5mm*H3.0mm

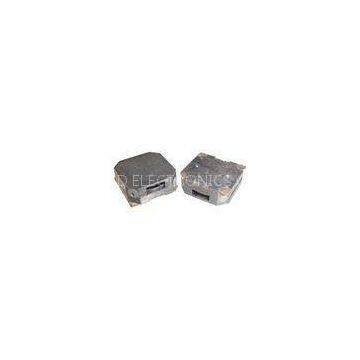

3.6V Vibration SMD Piezo Transducer , Piezoelectric Transducer L8.5mmW8.5mmH3.0mm

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	FHD		Place of Origin	China
Model Number	BM8530S-0327-16

Product Description

Delivery Time:To be advised
Certification:ISO9001 TS16949

3.6V Vibration SMD Piezo Transducer , Piezoelectric Transducer For Alarm

Quick Detail:

Size: L8.5mm*W8.5mm*H3.0mm SPL: Min.90dB at 10cm Input 2.7KHz/3.6Vo-p 1/2 Duty Square Wave Coil Resistance: 163ohm Operating Voltage: 2.5-4.5Vo-p Rated Current: Max.100mA Input 2.7KHz/3.6Vo-p 1/2 Duty Square Wave

Description:

buzzer SMD Electro-Magnetic Buzzer SMD Electro-Magnetic Element 3V Buzzer thin and small Buzzer

1. Technical Parameter

Measuring condition

Part shall be measured under a condition (Temperature: 5～35℃, Humidity: 45%～85%R.H., Atmospheric pressure: 860 ～1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ～1060hPa) is regulated to measure.

1	Rated Voltage	3.6 Vo-p
2	Operating Voltage	2.5～4.5 Vo-p
3	Rated Current	Max.100mA ,at 2700Hz 50% duty Square Wave 3.6Vo-p
4	Sound Output at 10cm	Min. 85dB,at 2700Hz 50% duty Square Wave 3.6Vo-p
5	Coil Resistance	16±3Ω
6	Resonant Frequency	2700Hz
7	Operating Temperature	-20℃～+70℃
8	Store Temperature	-40℃～+85℃
9	Net Weight	Approx 1g
10	RoHS	Yes

2. Dimensions Unit: mm

*Unit: mm; Tolerance: ±0.3mm Except Specified

*Housing Material: Black LCP

*Terminal plate: 3 soldering pads, tin Plating Brass

3.Electrical And Acoustical Measuring Condition

Recommended Driving Circuit

Recommended Setting

Frequency Response

3.6Vo-p 50% duty Square wave,10cm

Packing

Application:

CHANGZHOU FHD ELECTRONICS CO., LTD is a professional manufacturer in the field of ceramic components ,our products is widely used in household electrical appliances; mobile phones; computers; medical equipment; alarm system; pos machine ；access control system; toy; automobile; instrument and meter; electrical equipment; we can produce all kinds of piezo buzzers as long as you have the following details; welcome to consultation discussion.
