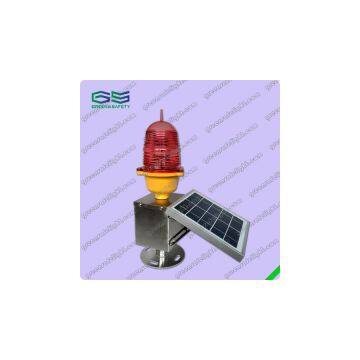

Help CenterGS-LS/R Low-intensity Solar-Powered Aviation Obstruction Light
Related Products
-
GS-MS/S Medium-intensity Type B Solar Aviation Obstruction LightNegotiableMOQ: 1 Kilogram -
GS-LS/C LED Solar Powered Marine LanternsNegotiableMOQ: 1 Kilogram
-
GS-LS/C-1 LED Solar Powered Marine LanternsNegotiableMOQ: 1 Kilogram
-
GS-LS/C-6 LED Solar Powered Marine LanternsNegotiableMOQ: 1 Kilogram
-
GS-MS/P Medium-intensity Type A Solar Aviation Obstruction LightNegotiableMOQ: 1 Kilogram
Application
GS-LS/R Low-intensity Solar-Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Advantage
1. PC material with good impact protection strength, thermal stability, high transmittance.
2. Bird spike against bird drop.
3. International advanced solar panel reaching at least 10 years service life.
4. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
5. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
6. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
7. Major Maintenance Cost Saving, Surge protection device inside light.
8. Strong corrosion resistance, Shock and Vibrations protection and UV protection.
9. At least 5 days autonomy (optional 15days)
10.Movable Panel for being convenient for customer choosing angle.
11. 3/4 inch installation way especially for tower or flag-pole installation way.
Main Parameter
1.Mode:GS-LS/R
2.Standard:ICAO (Aerodromes Annex 14) Low-intensity Type A or Type B,FAA L-810
3.Light intensity:≥10cd(Steady-burning mode),:≥32.5cd(Flash mode)
4.Working mode: Steady-burning mode or Flash mode(20-60times/minute)
5.Light source:LED,100,000hours service life
6.Operating voltage:DC3.2V(Solar powered Way),recyclable batteries with the lightest environmental and long life.
7. Material:
-Housing: PC
-Base: SUS304 stainless steel
8.Autonomy(without sunlight):at least 5 days(Option 20days)
9.Power Consumption:3W
10.Overall Size(mm): 130 by 130 by 385
11.Installation Size（mm): 3/4inch or 98 by 98 by 12
12. Weight: 4Kg
13.Emitting Color: Red
14.Ambient Temperature:-40℃~+60℃
15.Wind load: 80m/s
16. Protection Standard:IP65
