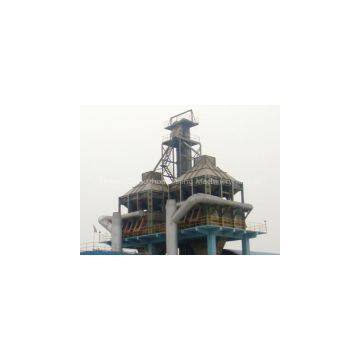

Professional Manufacturer of Vertical Preheater

Vertical preheater is one of the main equipments for active lime solution. New energy-saving vertical preheater rotary kiln calcining process preheats limestone to about 800℃ in the preheater by making use of the heat of flue gas in the kiln tail. Then the limestone is pushed out by hydraulic push rod. By way of the transporter chute, the limestone gets into the rotary kiln where it is roasted and decomposed. Throughout the lime calcining system, the preheater is divided into several different preheating chambers in accordance with different output. Each preheating chamber equipped with a set of hydraulic pusher device and equipped with automatic control system which transmits relevant data to the PLC control platform in the central control room so as to achieve centralized control. This system is highly automatized and enables a single point of control, which improves the safety in production process and production efficiency, makes the production process more humane and intelligent, and makes the production process more convenient.

Working Principle of Vertical Preheater: According to the position of vertical preheater kiln system, and the working principle of rotary kiln, vertical preheater works under negative pressure. Heat transmission mode is thermal convection. The material and air moves in the way of convection. When raw materials are fed into the preheater, effective measures must be taken to seal the inlet in order to prevent cold air entering the preheater under negative pressure. This is to ensure the effective use of heat and preheating effect in the vertical preheater.

Vertical Preheater by ZK: Henan Zhengzhou Mining Machinery Co., Ltd. has been engaged in rotary kiln production for more than 50 years. Our company has accumulated abundant experience and advanced technology in production. New products developed by our company such as energy- saving rotary kiln and new vertical preheater won the national patent certificate. Energy-saving rotary kiln working in coordination with preheater helps customers obtain good results in saving energy and reducing consumption, as well as in increasing economic efficiency.
