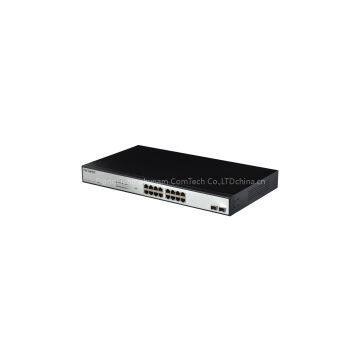

16-Port 10/100/1000M 802.3at PoE Switch With 2 Giga SFP Port

TS1816GF 16-port10/100/1000Mbps PoE switch with 2 SFP Slots. The PoE ports can automaticallydetect and supply power to IEEE802.3af/at compliant Powered Devices (PD). Theelectrical power and data transmission on the same cable can expand yournetwork to the places where no power lines or outlets, where you can installdevices such as APs, IP cameras, or IP phones etc.

TS1816GF provides a simple, cost- effective, and non-blocking wire-speedperformance with 19-inch metal shape for rack deployment in office ordepartment network application.

Features

Interface information

l16-Port 10/100/1000Mbps RJ45

l2-port 1000Mbps SFP Slots

l16-Port PoE Port

lSupport the two power supply modes forPOE ( Mode A and Mode B)

PoE(Powerover Ethernet）

lComplies with IEEE802.3af/at Power overEthernet

lSupports PoE Power up to 32W for each PoEport

lAuto detect power device

lRemote power and Data feeding up to 100m

Switch

lFlow Control for Full Duplex operationand back pressure for Half Duplex Operation

l8K MAC address, automatic addresslearning and address aging

lSupport Energy-Efficient Ethernet (EEE)function (IEEE802.3az)

lBuilt-in power supply can be chosen bythe customer

PoE Features

The TS1816GF can provide up to 32 Wattsof power to attached devices, such as VoIP phones, wireless access points;surveillance cameras etc, all over existing cat. 5cables. The switch eliminatesthe need for individual power sources for devices in the network, saving oncosts for power cables and avoiding power outlet availability issues.

Overload Arrangement

TS1816GF has the priority function whichwill help protect the system when the system power is overloaded. If all PoEPDs power consumption is >= 240/330W, a priority will be arranged among thePoE ports, then the system will cut off the power of the lowest-priority port(Thelarger the port number, the lower the priority).

Application

  Providing 16-Port PoE in-line power interfaces, the TS1816GF can easilybuild a power centrally-controlled IP phone system, IP Camera system andWireless AP group for the enterprise. Cameras can be installed around thecorner in the company or campus for surveillance demands. Without the powersocket limitation, the TS1816GF makes the installation of cameras more easilyand efficiently
