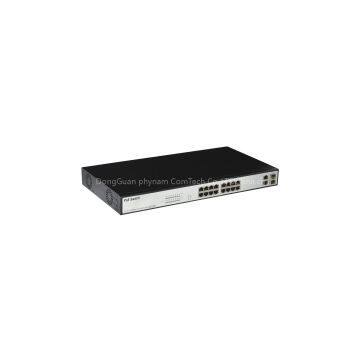

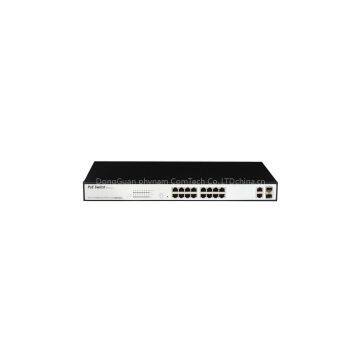

16+2G SFP/TX Combo-Port 10/100Mbps 802.3at PoE Switch

TS2016F is a 16+2GCombo PoE switch with 16 port PoE. The PoE portscan automatically detect and supply power to IEEE802.3af/at compliant PoweredDevices (PD). The electrical power and data transmission on the same cable canexpand your network to the places where no power lines or outlets, where youcan install devices such as APs, IP cameras, or IP phones etc.

TS2016F providesa simple, costeffective, and non-blocking wire-speed performance with 19-inchmetal shape for rack deployment in office or department network application.

Features

Interface information

l16 *10/100Mbps RJ45 ports

l2 *10/100/1000MbpsRJ45/SFP Combo ports

l16*ports PoE

PoE(Powerover Ethernet）

lComplies with IEEE802.3af/at Power overEthernet

lSupports PoE Power up to 32W for each PoEport

lAuto detect power device

lRemote power and Data feeding up to 100m

Switch

lFlow Control for Full Duplex operationand back pressure for Half Duplex Operation

l4K MAC address, automatic addresslearning and address aging

lBuilt-in power supply can be chosen bythe customer

PoE Features

  TheTS2016F can provide up to 32 Watts of power to attached devices, such as VoIPphones, wireless access points; surveillance cameras etc, all over existingcat. 5cables. The switch eliminates the need for individual power sources fordevices in the network, saving on costs for power cables and avoiding poweroutlet availability issues.

Overload Arrangement

TS2016F has the priority function whichwill help protect the system when the system power is overloaded. If all PoEPDs power consumption is >= 240/300W, a priority will be arranged among thePoE ports, then the system will cut off the power of the lowest-priority port(Thelarger port number, the lower priority).

Application

   Providing16-Port PoE in-line power interfaces, the TS2016F can easily build a powercentrally-controlled IP phone system, IP Camera system and Wireless AP groupfor the enterprise. Cameras can be installed around the corner in the companyor campus for surveillance demands. Without the powersocket limitation, the TS2016Fmakes the installation of cameras more easily and efficiently
