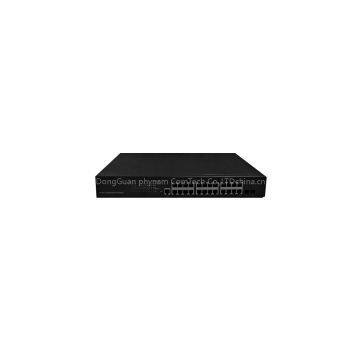

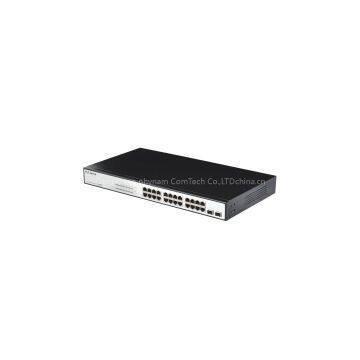

24-Port 10/100/1000M 802.3at PoE Switch With 2 Giga SFP Port

TS2624G is a24-port 10/100/1000M -bps PoE switch with 2 SFP Slots. The PoE ports canautomatically detect and supply power to IEEE802.3af/at compliant PoweredDevices (PD). The electrical power and data transmission on the same cable canexpand your network to the places where no power lines or outlets, where youcan install devices such as APs, IP cameras, or IP phones etc.

TS2624G provides a simple, cost- effective,and non-blocking wire-speed performance with 19-inch metal shape for rackdeployment in office or department network application.

Features

Interface information

l24 10/100/1000Mbps RJ45 Ports

l2 1000Mbps SFP Slots

l24 Ports PSE

PoE(Powerover Ethernet）

lComplies with IEEE802.3af/at Power overEthernet

lSupports PoE Power up to 32W for each PoEport

lSupport the two power supply modes forPoE (Mode A and Mode B)

lAuto detect power device

lRemote power and Data feeding up to 100m

Switch

lFlow Control for Full Duplex operationand back pressure for Half Duplex Operation

l8K MAC address, automatic addresslearning and address aging

lSupport Energy-Efficient Ethernet (EEE)function (IEEE802.3az)

lBuilt-in power supply can be chosen bythe customer

PoE Features

The TS2624G can provide up to 32 Watts ofpower to attached devices, such as VoIP phones, wireless access points;surveillance cameras etc, all over existing cat. 5cables. The switch eliminatesthe need for individual power sources for devices in the network, saving oncosts for power cables and avoiding power outlet availability issues.

Overload Arrangement

TS2624G has the priority function whichwill help protect the system when the system power is overloaded. If all PoEPDs power consumption is >= 240/300W, a priority will be arranged among thePoE ports, then the system will cut off the power of the lowest-priority port(Thelarger port number, the lower priority).

Application

  Providing 24-Port PoE in-line power interfaces, the TS2624G can easilybuild a power centrally-controlled IP phone system, IP Camera system andWireless AP group for the enterprise. Cameras can be installed around thecorner in the company or campus for surveillance demands. Without the powersocket limitation, the TS2624G makes the installation of cameras more easilyand efficiently .
