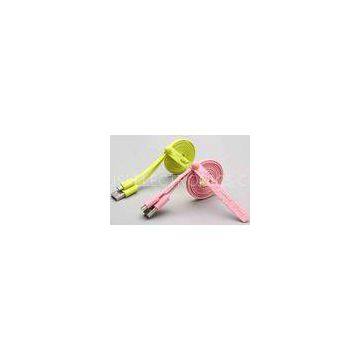

Pink / Green Sync Data SAMSUNG Galaxy 3 Charger Cable FCC For Computer USB Port

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	AIBUSI		Place of Origin	China
Model Number	ABS-C16

Product Description

Delivery Time:5-10 days
Certification:CE,ROHS, FCC

Pink / Green Sync Data SAMSUNG Galaxy 3 Charger Cable FCC For Computer USB Port

Quick Detail:

Name

Micro charge &sync usb cable

Brand Name

ABS-C16

Color

white,black,yellow,

green,blue.Pink

Feature

USB AM to Micro TPE Materieal, With DATA+Charge Func

Place of origin

Guang dong china (mainland)

Certificate

CE,RoHS, FCC

Production Introductions:

With micro connectors,it is compatible with Samsung blackberry and most mobile phones using Micro usb jack.

Production Description:

1,Sync data or charging 2,Can be through the Dock direct or indirect. 3,Connect to the Samsung ,blackberry and most mobile phones etc to computer USB port, in order to achieve efficient sync data transmission and the charging function. 4,100% brand new & high quality 5, Wide-body wire, not knot, convenient use 6, Many colors, more fashion, more personality

Wire rod Description:

1. No.of cond:4 Conductors

2. Conductor 1

a, Material: Enameled Copper Wire 1 UEW

b, Construction: 0.06mm/18 strands

c, Fillers: Nylon Silk White 250D

3. Conductor 2

a, Material: Enameled Copper Wire 1 UEW

b, Construction: 0.06mm/30 strands

c, Fillers: Nylon Silk White 250D

4. Jacket

a, Material: NON Migration TPE Dull Surface

b, Diameter:2.0*5.5mm

c, Way of Extrusion :Solid

Construction
ITEM	DESCRIPTION
No.of Cond	4 Conductors
Conductor(1)	Material/Color	Enameled Copper Wire 1 UEW / According to the picture ( 1 , 4 )
Construction	0.06 mm / 18 strands
Fillers	Nylon Silk White 250D
Conductor(2)	Material/Color	Enameled Copper Wire 1 UEW / According to the picture ( 2 , 3 )
Construction	0.06 mm / 30 strands
Fillers	Nylon Silk White 250D
Jacket	Material/Color	NON Migration TPE Pass ROHS/Green Dull Surface
Diameter	2.0 * 5.5mm
Way of Extrusion	Solid

DESCRIPTION:［(0.06/18+250D)2C+(0.06/30+250D)2C］*1F
TITLE: 2.0 * 5.5 4C TPE
NO	Conductor
1	Blue
2	Nature
3	Red
4	Green

Characterisitcs:

Conductor Resistance:Resistance shall not exceed 0.6 ohms/m Withsand Voltage test: No Breaking (250 VAC/1min,between two wires) Insulation Resistance:Shall not less than 10 Mohms·m(250 VAC/1min,between two wires) NON Migration Test: N0 Trace (500g;60℃;ABS;48H)

ITEM	Condition	SPEC
Conductor Resistance	￣	Resistance shall not exceed 0.6 ohms/m
Withstand Voltage Test	250 VAC / 1 min , between two wires	No Breaking
Insulation Resistance	250 VAC / 1 min , between two wires	Shall not less than 10 Mohms·m
NON Migration Test	500g ; 60℃; ABS ; 48H	NO Trace
Bending Test	Load	Angle	Diameter	Jig	Bend Radius	Frequency	Requirement	Not to cut off Wire
200g	±90	￣	√	R25.4	30/min	min:3000
Envirommental Protection	ROHS	Accord with
