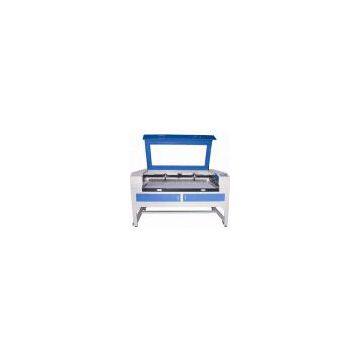

Help CenterDouble Heads Laser Cutting/Engraving Machine(TY-960BT)
Related Products
-
CO2 Laser Marking Engraving Machine (LYRF-30)NegotiableMOQ: 1 Set -
Laser Cutting Machine/Laser Engraving Machine (TY-960B)NegotiableMOQ: 1 Set
-
YAG Metal Laser Marking Machine (YAG50)NegotiableMOQ: 1 Set
-
Laser Cutting Machine (TY-1280B)NegotiableMOQ: 1 Set
-
Multi-Purpose Laser Engraving Cutting Machine (TY-SR640)NegotiableMOQ: 1 Set
This series laser cutting machine is mainly used to cut and engrave many nonmetal materials, two laser heads working simultaneity, more high efficiency, and controled by computer, easy to operate, high speed, high precision. Applicable Materials: Cloth, leather, plexiglass(acrylic), wooden product, plastic, rubber, crystal ceramic tile, jade.
Features:
1) Laser power: 70w
2) Cutting thicknes: 0-25mm(Plexiglass(acrylic), others determined by materials)
3) Minimum shaping character: Chinese character 2x2mm, Letter 1x1mm
4) Resolution ratio: <0.01mm
5) Power supply: AC220v± 10%, 50HZ
6) Location precision: <0.01mm
7) Number of hanged line: 90/line
8) Gross power: <1000w
9) Operating temperature: 0oC-45oC
10) Operating humidity: 5-95%(Free of condensed water)
11) Engraving speed: 0-48000mm/min
12)Cutting speed: 0-36000mm/min
13) Graphic format supported: BMP, GIF, JPGE, PCX, TGA, TIFF, PLT, CDR, DMG, DXF.
Applicable Materials:
Wooden, paper, leather, plexiglass, resin, acrylic, woolens, plastic, rubber, crystal ceramic tile, bowlder, bamboo.
Applicable Industry:
This kinds model apply to cloth, leather, fabric toy, computerized embroidery cutting, electric product, module, arts&gifts, advertising, decoration, printing and package, paper etc.
Basic configuration:
Two-laser-head works to improve working efficiency
Adopt imported UK joint axletree set which adjust the tool automatically
Step motor import from Germany
Adopt 64 bits DSP chip and automatic off-line control system
Six balanced straight-line guide tracks from Japan
70W Co2 glass laser tube
The laser lens import from Singapore completely
Chinese-English LCD manifestation mold a combination
Laser provide constant temperature with cool packa.
