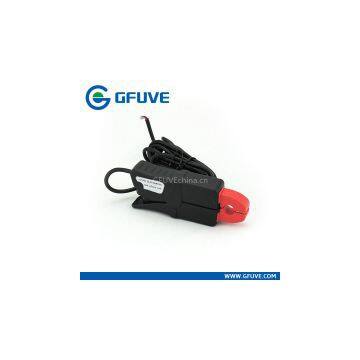

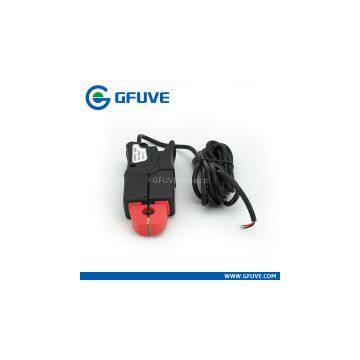

XQ13 HIGH PERFORMANCE HANDHELD CLAMP ON CURRENT TRANSDUCER
Negotiable
MOQ: 3 Kilograms (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GFUVE
Place of Origin:
China
Model Number:
XQ13
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Lightweights and Flexible AC Current ProbeUS$ 20 - 20MOQ: 3 Pieces -
China Export High Performance Copper Wire Clamp-on AC Current SensorUS$ 200 - 200MOQ: 3 Pieces
-
Online Wholesale High Precision Standard Mini Clamp-on Current Sensor CtUS$ 200 - 200MOQ: 3 Pieces
-
Global Wholesale High Precision AC Measurement Clamp On Current ProbeUS$ 200 - 200MOQ: 3 Pieces
-
Hot Sale Wide Measuring Range Current ProbeUS$ 200 - 200MOQ: 3 Pieces
Brand Name
GFUVE
Place of Origin
China
Model Number
XQ13
INTRODUCTION:
The model XQ13 handheld clamp on current transducer is
suitable for 10A-100A cable online measurement, it
belongs to high performance transducer field.
FEATURES:
1.Suitable for 10A-100A cable online measurement.
2.Holding wire diameter: φ13mm
3.Dimension: 52.5mm×136.5mm×28mm
4.Load capacity: ≤4Ω
5.Installation: clamp type
6.Output mode: lead output
| Electrical parameters | |
|---|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2% |
| Primary current | 0 - 100A AC |
| Secondary current | 0 - 100mA AC (customized) |
| Max. Cont. Input current | 120A |
| Over voltage category | CAT III 600V |
| Output signal | 100mA AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032 |
| Installation | clamp type |
| Output mode | lead output(2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 48 x 179 x 27 |
| Weight (g) | 280 |
| Holding wire diameter (mm) | φ13 |
| Max. jaw opening (mm) | 13 |
