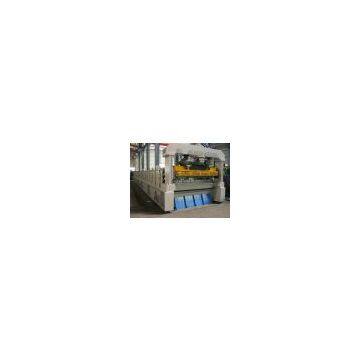

Metal Roofing Roll Forming Machine, Metal Sheet Roll Forming Machine:
Roofing roll forming machine is an updated version of traditional roll forming machine. Instead of using screws at joining position, the corrugated sheets produced by this line are Self-locked and have successfully solved the problem of leakage. The whole line consist of un-coiler.
The corrugated sheets produced by this line are strong and durable with high ribs. The joining type of these sheets is self-lock, which makes it easy to install and safe with excellent water proof and storm resistance. The products are widely used as the roof of factory, warehouse, garage, gymnasium, exhibition center, cinema.
Machine Components:
(1) Manual Un-coiler 1 set
(2) Roll-Forming M/C 1 set
(3) Hydraulic Cutting 1 set
(4) PLC Control System 1 set
(5) Product Rack (un-powered) 1 set
Technical Specification:
(1) Manual Un-coiler:
Un-powered; Load capacity = Max.5Tons;
(2) Roll-Forming M/C:
About 18steps to form; Material of Roller: 45# steel with chromizing on surface
Voltage:380V/50Hz; Main line speed:8-12 m/min;
(3) Hydraulic Cutting:
Stop to cut, Post cut, Cutting tool material: Cr12, Heat treatment
(4) PLC Control System:
Using Mitsubishi PLC Control the quantity, length automatically, LCD screen, (5) Product Rack (UN powered)
Hydraulic Un-coiler:
Hydraulic system to expand coil inner hole;
Frequency Inverter to regulate turning speed, Automatic stop device;Load capacity = Max.5Tons;
Material:
(1) Coil Width: 1250mm
(2) Suitable Coil Thickness: 0.3-0.5mm
(3) Suitable Raw Materials: Pre-painted coil (Q235A); Yield bearing stress: 235 Mpa
--------------------------------------------------------------------------------
Contact Name: Tony Tang
Email: tony@mtc-china.com
MSN:tanglei_tony@hotmail.com ,
Skype: tangleitony
Tel: 0086-21-67228332
Fax: 0086-21-67228302
Cell: 0086-18001958638
Website:
OR:
OR:
Business focus: Roll Forming Machine, C, Z, U, W Purlin Forming
Machine, Roof Tile Forming Machine, Eps, Pu, Rockwool Sandwich Panel
