Sell Fancy Yarn Crocheting Machine

Model No.:SGD-980
Product Origin:China
Brand Name:SANTA
Price Terms:FOB, CFR, CIF
Payment Terms:T/T, L/C
Certification:

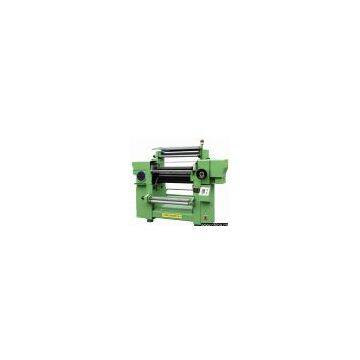

Description:SGD-980 model is a high speed fancy yarn crocket machine. The machine first knits cloth with warp and weft yarn, then cuts the warp yarn to form the final yarn. Otherwise it knits warp and weft yarn to straightly kit belt yarn. SGD-980 machine is suitable to knit various kind of yarns, both natural fibers (wool, silk, cotton and linen) and synthetic fibers (polyester and acrylic). This entire material can be dyed before or after knitting, in accordance with its mattress. The finished yarn is of flat shape. SGD-980 model is a high speed fancy yarn crocket Machine controls the device by changing inlay methods to produce all king of various pattern yarns. The machine speed is controlled by a frequency converter, starting at slow speed with stepless changes, fast breaking to low speed according to meet the test production demand. The machine is divided into three main sections. Technical parameter: Operational breadth: 762mm (30 inches) gauge Needles per inch: 15, 18, 20 (according to customer need) Weft needle plates: 2 sets Stitch density: 5-20S/cm Link chain: 12-50 sections Main shaft speed: max. 1,500r/min The girth of rack frame: 170cm Whole machine power: 11.56kW No. of yarn bobbin: 520 pieces Gauge of yarn spindle: 200mm Main machine (L x W x H): 1,750 x 1,950 x 1,750mm Winding section (L x W x H): 3,000 x 2,800 x 2,400mm Yarn frame (L x W x H): 4,200 x 1,880 x 2,750mm
