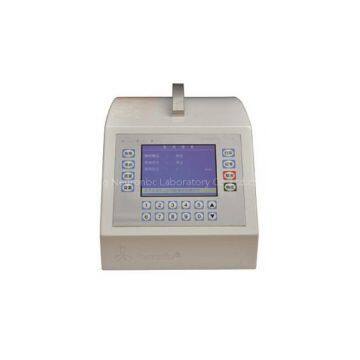

V 4.0 Integrity Tester
How to avoid trace quantity of ethanol or IPA contamination when conduct the retention grade gas filters testing, the method of Water Based test (WH) for Hydrophobic Filter is strongly recommended. IntegtestTM V4.0 Integrity Tester is designed for this aim.
Brief Description:
Water Based test function: using purified water as test liquid instead of IPA and Ethanol， While covering the all lower version machine function.
Compatibility: built-in parameters being of good compatibility with Millipore, Sartorius and Pall.
Specifications:
power 100-240VAC,50/60Hz, 110W
Maximum working pressure 9999mbar
Minimum working pressure 3000mbar
Dimensions 400mm(length)X380mm(Depth)X335mm(Height)
Working condition Temperature:20±15℃;Moisture:45±35%
Test time
Upstream volume test : 5min±2min;
Quick D test: 10min±2min
Base BP test: 15min±2min
Enhanced test: 20min±2min
WH: 30min±2min
LCD 5.7” ; TFT, monocular
Series I/O type RS232
Language of menu Chinese or English
