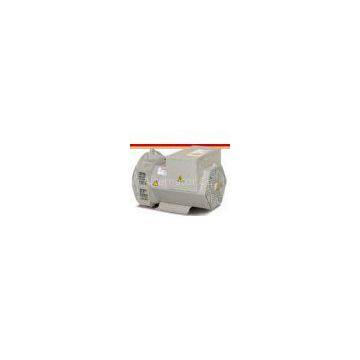

1800rpm 3 Phase Brushless Sychronous Generator 22KW / 27.5KVA IP22
Quick detail:
| Place of Origin: | WUXI CHINA | Brand Name: | WERNA | Model Number: | WR184F |
| Output Type: | AC Three Phase | Speed: | 1500rpm/ 1800rpm | Frequency: | 50hz/60hz |
| Rated Power: | 22KW/27.5KVA | Rated Voltage: | 110V-690V | WARRANTY: | Two year |
| Color: | by buyer\'s option | Label service: | available | OEM series: | available |
| wire pitch: | 2/3 pitch design | Pretection class: | IP22 | Insulation class: | H |
| tem raise: | 180 degree | Material: | 100% copper wire |
Specication:
|
manufacture |
Wuxi City ,Jiangsu Prov ,China making alternators |
|
Output type |
AC Three Phase Brushless generator |
|
Terminal |
12 / 6 Wire |
|
Rated Voltage |
110V~690V |
|
Frequency |
50Hz/60Hz |
|
Speed |
1500RPM/1800RPM |
|
Mounting Dimension |
Copy Stamford Type |
|
Winding pitch |
2/3 pitch |
|
Excitation |
Brushless, self-excited, synchro |
|
Insulation Class |
H |
Description
Technical Data
| Alternator Model | copy stamford series |
| Phase | Three phase |
| Frequency | 50Hz/60Hz |
| Speed | 1500rpm/1800rpm |
| Output Range | 8.1-2200KVA |
| Characters | single bearing,4-pole, brushless, H class insulation, IP23 |
| Waveform Distortion | no load <1.5% and non-distorting balanced linear load <5% |
| THF/TIF | THF<2%, TIF<50 |
Features:
1) Any permanent magnetic generators, providing invariable excitation on all occasions.
2) Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current.
3) Balanced rotor with single or two sealed ball bearings
4) Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
5) Wide range of Flange adaptor and single bearing coupling disc
Meet leading standards
MECHANIC FEATURES
Frame
All industrial standard is IP22,also IP23 is an option.
Marine standard alternator is IP23,Air filter is an option, but rated power of the alternator will decrease 5% while it is installed.
Axis and Key
All of alternator rotors should pass balance test, whose vibrations are lower than the minimum of BS6861 P.1,G 2.5 two bearing alternator has a half-key testing balance
Terminal and terminal box
The three-field alternator had 12 leads brought out to the terminals in the terminal box. The terminals are put on the non drive end . The box is equipped with removable panels.
Voltage regulation
Voltage regulation refers to the change of voltage from no-load to full-load with power factor ranging from 0.8 to 1 and 3%s fluctuation of the speed of engine. Voltage is adjusted via potentiometer of AVR
ELECTRIC FEATURES
INSULATION
Insulation Class H
All regulatory components are made up with special materials and are immersed in lacquer by peculiar tech. Vanish and colophony ma
