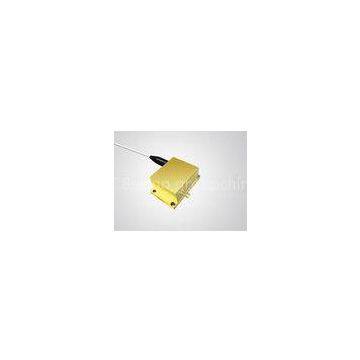

Pump High Power Diode Laser Module 976nm 0.15N.A. / 0.22N.A. 30W

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BWT		Place of Origin	China
Model Number	K976DA3RN-30.00W

Delivery Time:4-8weeks
Certification:ISO9001

Ant Series - 30W 976nm Pump High Power Diode Laser Module K976DA3RN-30.00W 0.15N.A. / 0.22N.A.

Features:

915nm, 940nm, 976nm Wavelength

30W output power

105µm fiber core diameter

0.22N.A.

1030nm-1200nm feedback protection
Applications:

Laser pumping

Medical use

Material processing

Specifications(25℃)	Symbol	Unit	K976DA3RN-30.00W
Optical data	CW-Output Power	P0	W	30
Center Wavelength	λc	nm	976
Tolerance of λ	-	nm	±3, ±10
Spectral Width (FWHM)	△ λ	nm	<5
Temperature Drift of λ	-	nm/℃	~0.3
Fiber data(1)	Fiber Core Diameter	Wc	µm	105
Numerical Aperture	N.A.	-	0.22
Fiber Connector	-	-	SMA-905
Electrical data	Operating Current	Iop	A	12
Threshold Current	Ith	A	0.5
Conversion Efficiency	η	%	48
Slope Efficiency	ηD	W/A	2.6
Operating Voltage	Vop	V	5.4
Reverse Voltage	Vre	V	7.5
Feedback Isolation	Wavelength Range	λ	nm	1030-1200
Isolation	-	dB	>30
Others	Operating Temperature	Top	℃	10~30
Storage Temperature	Tst	℃	-20~+80
Expected Lifetime	MTTF	h	>100, 000
Dimensions (fiber and connector not included)	-	mm	42.0 x 25.0 x 17.0
Lead Soldering Temperature	Tis	℃	260(10 sec.)
