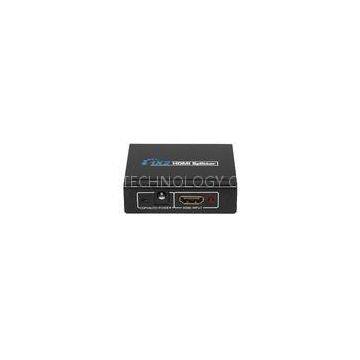

Full HD 1 In 2 Out HDMI Splitter 2 Way With 3D HDMI 1.4a Video Format

Full HD 1 In 2 Out HDMI Splitter 2 Way With 3D HDMI 1.4a Video Format thumbnail-1
Full HD 1 In 2 Out HDMI Splitter 2 Way With 3D HDMI 1.4a Video Format photo-1
Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DODONET
Place of Origin:
China
Model Number:
D-9812
Contact Supplier Request Quote Chat Now
Sz Dodonet Technology Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DODONET
Place of Origin China
Model Number D-9812
Delivery Time:10 working days after received your payment
Certification:CE / ROHS / FCC / SGS

HDMI 1.4 Splitter HDMI Signal Splitter 1 x 2 with 3D HDMI 1.4a Video format

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product.

1 . Introduction

1×2 HDMI Splitter distributes 1 HDMI source to 2 HDMI displays simultaneously. It offers HD video solution for super market, shopping Mall, HDTV/STB/DVD/Projector /DVR factory, data control center, information distribution, conference room presentation, education and training, corporation showroom, luxurious house, etc..

2 . Specifications

Frequency Bandwidth 2.97Gbps
Input Ports 1 x HDMI Female input port
Output Ports 2 x HDMI Female output ports
Power Supply DC 5V 1A
ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm) 60 mm(W) x 70mm(D) x 20mm(H)
Weight 125g
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 5W

3 . Feature

1. 1 HDMI input signal split to 2 HDMI sink devices.

2. HDCP 1.4 protocol compliant.

3. 3D HDMI 1.4a video format support.

4. 3D video support including frame packing for all 3D formats up to a 297MHz TMDS clock.

5. Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz

6. Support deep color 30bit, 36bit, 48bit per pixel.

7. Digital audio format, as DTS-HD/Dolby-true-HD/LPC
M 7.1/DTS/Dolby-AC3/DSD.

4 . Operation controls and Function

Front Panel

1. EIDI Mode:

Copy Mode: copy output 2 EDID to input port.

Auto Mode: Compare output port 1 and 2 EDID.

2. DC 5V: Plug the 5V DC power supply into the unit and connect the adapter to AC wall outlet.

3. HDMI Input: This slot is where you connect the HDMI source output from DVD, PS3

4. Input LED: This red LED illuminate when the HDMI signal plug in.

Rear Panel

1. Output 1: This slot is where you connect the HDTV or monitor with HDMI cable.

2. Output 1 LED: This red LED illuminate when the TV plug in HDMI output Port 1.

3. Output 2 LED: This red LED illuminate when the TV plug in HDMI output Port 2.

4.Output 2: This slot is where you connect the HDTV or monitor with HDMI cable.

5 . Package Content

HDMI Splitter 1 * 2 1pcs
5V/1A DC power supply adapter 1pcs
Operation Manual 1pcs

6 . Application Example
