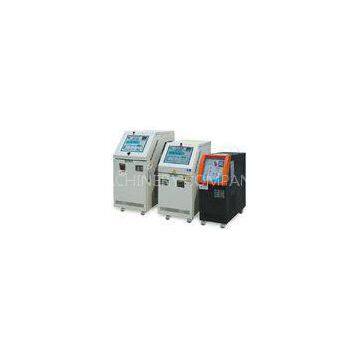

AODE 0.5HP Standard Oil Temperature Control Unit with ISO / CE Certificate
Quick Detail:
1. Temp. Control accuracy:PID±1℃
2. Temp. Control range: Inlet water temperature+25℃-180℃
3. Certification:CE & ISO
4. Controller:microcomputer
5. Heating capacity: 6KW
6. Maximum power consumption: 7KW
7. Alarm function:Excess temperature, open phase, oil starvation, overloading, reverse turn
Description:
Explosion-proof equipment(optional) Air blowing and return water function(optional) Thermometer for return water Automatic air-exhausting function after startup Switchover of heating power Instant cooling shut-down function(optional) RS485 communication function for automated management(optional) BY-PASS pressure release loop for hot water Customizable multi-point temperature control unit Customizable horsepower and heating power of water pump Brands OMRON, FUJI, TE, LG, MOELLER, ABB, and WEST for electric appliances Range of temperature control: +15℃-180℃ for incoming water Stainless steel integrated pipelines for less pipe resistance and rust Control mode: imported microcomputer or PLC(optional) Perfect safety protection, fault display, easy repair and maintenance even free of professionalsSpecifications:
|
ITEM |
UNIT |
AOS-05 |
|
Temp control range |
℃ |
Inlet water temperature +25℃-180℃ |
|
Temp control accuracy |
℃ |
PID±1℃ |
|
Power supply |
AC3∮380V 50HZ +E(5M) |
|
|
Heat transfer medium |
Conduction oil |
|
|
Cooling method |
Indirect Cooling |
|
|
Heating capacity |
KW |
6 |
|
Max. power consumption |
KW |
7 |
|
Horsepower of pump |
hp |
0.5 |
|
Working flow of pump |
L/min |
30 |
|
Working pressure of pump |
Kg/cm2 |
1.7 |
|
Oil reserve |
liter |
8 |
|
Alarm function |
excess temperature/Open phase/oil starvation/ overloading/reverse turn |
|
|
Cooling water pipe |
inch |
1/2 |
|
Circulating water pipe |
inch |
3/8×2 |
|
Size(L×W×H) |
mm |
630×325×745 |
Competitive Advantage:
1. Strict quality control system
2. Three factories in shenzhen, tianjin and suzhou. More than 60 offices in China.
3. Our product is environmental and energy-saving
4. We have the production certification organic heat transfer material heater
5. High density heat insulation cotton and aluminum foil
6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST
7. Imported microcomputer or PLC
8. Customization thick copper pipe 1.0-1.2
Applications:
Chemical Industry
Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic Injection molding, light guide plates, connectors, Chemical engineering,
