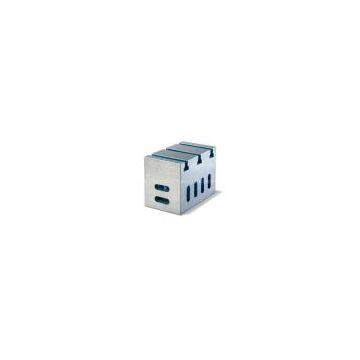

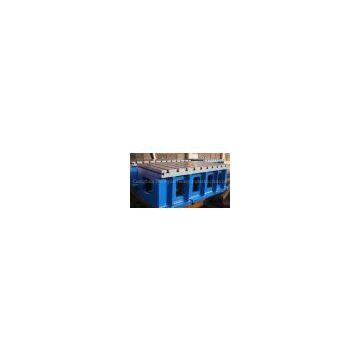

Cast Iron BOX ANGLE PLATES
Useful as a versatile tool for layout, machine set-ups, tooling and inspection. Can also be used as right angles or squares. Matched pairs can be used as parallels and height blocks. A job can be fixed with one of the faces and rotated in five planes without the need for repositioning or disturbing accuracy.
SALIENT FEATURES:
Made generally as per IS-6232-71 in Grade-1 and Grade-2 accuracies with hand-scrapped surface finish.
Made from high duty close grained Castings conforming to Grade FG-220 of IS-210. Castings duly stress relieved.
Machined T-slots on one face and cored elongated slots on four opposite faces provided for clamping purpose.
Matched pairs can be offered on request at extra cost.
Precision Box Angle Plates as per IS-6985-1973 having tolerances approx. half of those mentioned in the table can be made on request at extra cost.
STANDARD SIZES AS PER IS-6232-1971
Tolerances of Standard size Angle Plates (microns)
Sizes (mm)
(L x B x H)
Flatness of
working surfaces
Squareness of
working surfaces
Parallelism of
opposite faces
GR-1
GR-2
GR-1
GR-2
GR-1
GR-2
125 x 75 x 100
5
25
10
50
13
63
175 x 100 x 125
5
25
13
50
15
63
250 x 150 x 175
8
38
15
75
18
88
350 x 200 x 250
8
38
18
75
20
88
450 x 300 x 350
10
50
18
100
20
113
600 x 400 x 450
10
50
20
100
23
113
Other sizes and large sizes on request.
