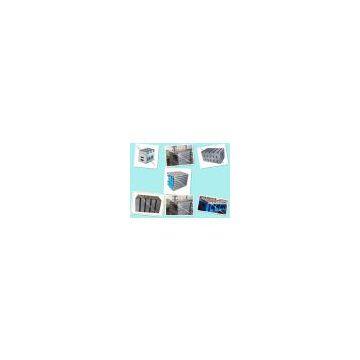

ZHONGBO Cast Iron Box Angle Plates/Angle Plate
Useful as a versatile tool for layout, machine set-ups, tooling and inspection. Can also be used as right
angles or squares. Matched pairs can be used as parallels and height blocks. A job can be fixed with one of
the faces and rotated in five planes without the need for repositioning or disturbing accuracy.
SALIENT FEATURES:
Made generally as per IS-6232-71 in Grade-1 and Grade-2 accuracies with hand-scrapped surface finish.
Made from high duty close grained Castings conforming to Grade FG-220 of IS-210. Castings duly stress
relieved.
Machined T-slots on one face and cored elongated slots on four opposite faces provided for clamping purpose.
Matched pairs can be offered on request at extra cost.
STANDARD SIZES AS PER IS-6232-1971
Tolerances of Standard size Angle Plates (microns)
Sizes (mm)
(L x B x H) Flatness of
working surfaces Squareness of
working surfaces Parallelism of
opposite faces
GR-1 GR-2 GR-1 GR-2 GR-1 GR-2
125 x 75 x 100 5 25 10 50 13 63
175 x 100 x 125 5 25 13 50 15 63
250 x 150 x 175 8 38 15 75 18 88
350 x 200 x 250 8 38 18 75 20 88
450 x 300 x 350 10 50 18 100 20 113
600 x 400 x 450 10 50 20 100 23 113
Other sizes and large sizes on request.
