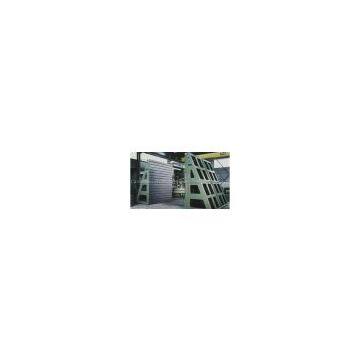

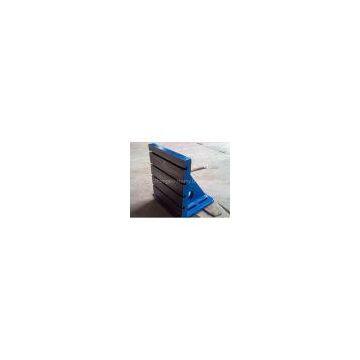

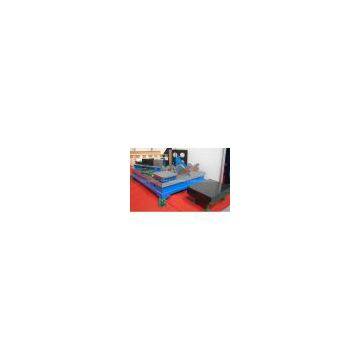

T-slotted Cast Iron Angle Plate Plates
We design highly accurate Cast Iron Angle Plates with accurate dimensions. These Cast Iron Angle Plates are widely used for clamping and holding work in vertical position for layout. Our Cast Iron Angle Plates are also preferred for tooling and machining.
Specifications Of The Cast Iron Angle Plates :
Made generally as per IS- 2554 in Grade-1 and 2 accuracies
Precision Angle plates generally as per IS-6973 made on request
Angle Plate with `lislots’ on vertical side and elongated holes on table face made upon request at extra cost
Specifications
Item Code Size In mm L x B x H Grade of accuracy Flatness of working faces Squareness of working faces over dim 'H'
17401 125 x 75 x 100 12
5
25
1050
17402 175 x 100 x 125 12
5
25
1350
17403 250 x 150 x 175 12
8
38
1575
17404 350 x200 x 250 12
8
38
1875
17405 450 x 300 x 350 12
10
50
18100
17406 600 x400 x 450 12
10
50
20100
17407 700 x 420 x 700
2
50
140
17408 600 x 600 x 1000
2 50 140
17409 1500 x 900 x 1500 2 70 300
»Other Available Sizes
Item Code Size In mm Item Code Size In mm Item Code Size In mm
17501 75 x 75 x 75 17506 225 x 225 x 225 17511 600 x 600 x 600
17502 100 x 100 x 100 17507 250 x 250 x 250 17512 900 x 600 x 700
17503 125 x 125 x 125 17508 300 x 300 x 300 17513 1200 x 600 x 1000
17504 150 x 150 x 150 17509 400 x 400 x 400 17514 900 x 900 x 1600
17505 200 x 200 x 200 17510 500 x 500 x 500 17515 1000 x 1400 x 2500
