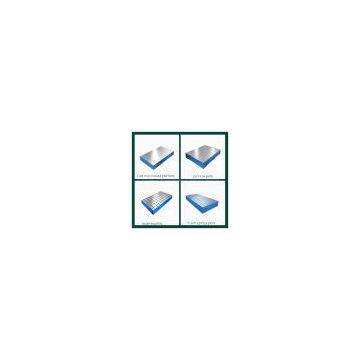

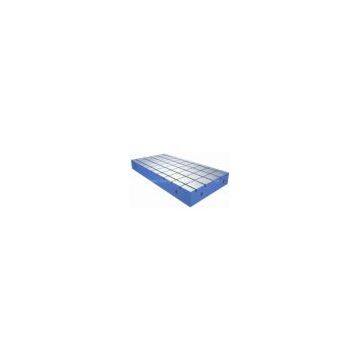

CAST IRON SURFACE PLATES PLATE
Cast Iron Surface Plates provide a precision reference for spotting, tool making, inspection of parts, checking accuracy of other surfaces and for many types of gauging and marking out operations:
SALIENT FEATURES:
Made generally as per IS-2285-2003
Made from good quality close grained high duty Cast Iron Castings conforming to Grade FG-220 of IS-210, duly stress relieved
Top surface offered with hand-scrapped finish.
Flatness deviation of any local area of 250 x 250 mm of working surface not exceeding - 0.003 mm for Grade-0, 0.007 mm for Grade-1, 0.015 mm for Grade-2 and 0.030 mm for Grade-3.
Rexine cover provided for top working surface and edges.
STANDARD SIZES AND TOLERANCE OF FLATNESS
Size in MM
Flatness tolerances of various Grades (microns)
(L x B)
Grade-0
Grade-1
Grade-2
Grade-3
60 X 100
3.0
6.0
12.0
25.0
250 X 160
3.5
7.0
14.0
27.0
250 X 250
3.5
7.0
15.0
30.0
400 X 250
4.0
8.0
16.0
32.0
400 X 400
4.5
9.0
17.0
34.0
630 X 400
5.0
10.0
20.0
39.0
630 X 630
5.0
10.0
21.0
42.0
1000 X 630
6.0
12.0
24.0
49.0
1000 X 1000
7.0
14.0
28.0
56.0
1600 X 1000
8.0
16.0
33.0
66.0
2000 X 1000
9.5
19.0
38.0
76.0
2500 X 1600
11.5
23.0
46.0
92.0
Other sizes on request.
