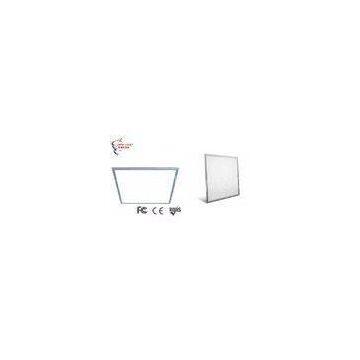

Aluminum 60cm x 60cm LED Light Flat Panel AC 220V For Business Centre , 85lm / Watt

Delivery Time:10 days
Certification:CE,ROHS

Size 60cm x 60cm LED Light Panel Input Voltage AC 220V For Business Centre

Quick Detail:

1.  Led chip: Smd3014 Dimension:  600mm x 600mm x 12mm

2.  Led Chip quantity:  320Pcs

3.  Dimension:  600mm x 600mm x 12mm

4.  Frame material: Aluminum

5.  Beam way: 4 sides

6.  Light color: W/NW/WW

Description:

1.  Good quanlity led chip,

2.  Strict quanlity control at core technology

3.  Ce, Rohs License

4.  Famous brand automachine manufacture.

5.  Stable led power supplier design.

6.  Nice looking.

PARAMETER

·  Item NO.:	SL6060 W/NW/WW
·  Dimension:	600mm x 600mm x 12mm
·  LED type:	SMD 3014
·  LED Q\'ty:	320pcs
·  Material:	Aluminum + PMMA
·  Beam Way:	Beam at four sides
·  Working temperature:	-10.C~40.C
·  Installation method:	Embedded. Hanging
·  IP rate	IP40
·  N.W.(±0.1Kg)	3Kg

PHOTOELECTRICITY PARAMETER

·  CCT :	2900-6500K
·  Flux.(±10%):	3060lm
·  Light Efficiency(±10%):	85lm / Watt
·  Input voltage:	AC 220V
·  Input Power:	36W
·  CRI:	Ra>80
·  Dimmable:	Non Dimmable
·  Lighting Angle:	180°

DIMENSIONAL DRAWING

PRODUCT DETAILS FOR 600X600X12MM LED PANEL LIGHT

APPLICATION

◎ Commercial  lighting, environmentally friendly lighting, warehouse , supermarket  and home illumination.

◎ IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel  and other public places.

◎ Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour

range

installation instrustions

Why choose us?

every panel light will pass 24 tests (including led chip light output test, voltage test, power supplier test, the frame flatness test, light guide plate test,and so on) before we delivery. we use top range material for led panel light, for example, laser light guide palte from japan, led chip from taiwan, the frame use 6030 pure aluminu, and very stable power supplier. fast lead time (we use less than 10 days manufacture 10,000 pcs led panel light from received payment to delivery). fast response wow price

thanks for your inquiry, we will response you in 8 hours.
