Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > 55Kw C Z U Purlin Roll Forming Machine Cutting Plate With PLC Control System

55Kw C Z U Purlin Roll Forming Machine Cutting Plate With PLC Control System

Wuxi Hongda Cold-bend Machinery Manufacturing Co.,ltd.

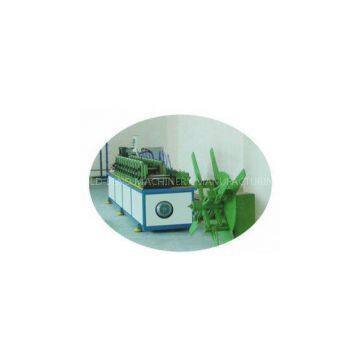

55Kw C Z U Purlin Roll Forming Machine Cutting Plate With PLC Control System photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Place of Origin:

China

Model Number:

C & Z & U Channel

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name HD

Place of Origin China

Model Number C & Z & U Channel

Delivery Time:30 days after deposit
Certification:CE, ISO9001

55Kw C Z Purlin Roll Forming Machine Cutting Plate with PLC Control System

Applications:

It is used for steel structural framings.

Specifications:

No.	main parameter of roll forming machine
1	Thickness	2-4mm
2	Width	≤550mm
3	Dimensions	2.132.5m
4	Forming steps	12-16 steps
5	Power	55Kw
6	Productivity	35m/min
7	Diameter of the roller	Φ80mm
8	Weight	About 3.8T
9	Material of the cutting plate	Cr12
10	Processing precision	Within 1.00mm
11	control system	PLC
12	cutting	Hydraulic automatic
13	Voltage	380V 50Hz 3phases
14	Suitable to process	Cold steel plate /Hot rolled (black) steel

Description:

C Z U purlin roll forming machine,
purlin rollformer. one machine can produce both C purlin and Z purlin in high changing speed.
C Z Purlin Roll Forming Machine, purlin rollformer. one machine can produce both C purlin and Z purlin. Changing speed from one size to another size or from C purlin to Z purlin is very quick, within 15 to 20 minutes.
C&Z Quick Changeable Purlin Roll Forming Machine, C&Z quick interchangeable purlin forming machine, fast interchangeable C&Z purlin machine.
C&Z quick interchangeable purlin roll forming machine adopts a special structure. The rollers for C & Z are changed very quickly without dismantle any parts.
It is comprised of mechanical expansion decoiler (passive drive, capacity 5tons), feeding & leveling device, pre-punching device (two punching cylinders), pre-cutting device, main forming unit, PLC control system (PLC, touch screen, inverter are from Japan), hydraulic station, manual run-out rack (suitable for 6 meters).
Purlin size: 100-300mm

Competitive Advantage:

1. Automatic roll forming machine
2. High quality
3. Factory direct price
4. Design by COPRA@ software from Germany
5. On time delivery
6. Good service
