Home > Electrical & Electronics > Passive Components > Capacitor > Sell Metallized Polypropylene Film Capacitor

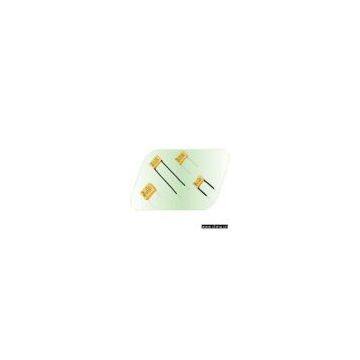

Sell Metallized Polypropylene Film Capacitor
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Sell Metallized Polypropylene Film Capaciter for ACNegotiableMOQ: 1 Piece -
Sell Metallized Polypropylene Film Capacitor (Axial)NegotiableMOQ: 1 Piece
-
Sell Metallized Polypropylene Film CapacitorNegotiableMOQ: 1 Piece
-
Sell Metallized Polypropylene Film Capaciter for ACNegotiableMOQ: 1 Piece
-
Sell Microminiature Metallized Polyester Film Capacitor (Box)NegotiableMOQ: 1 Piece
Place of Origin
China
Model No.:X2-MPX/MKP
Product Origin:China
Brand Name:EMF
Price Terms:FOB Shenzhen
Payment Terms:T/T, L/C
Certification:
Description:Features: 1, Box type provides the identical outer appearance 2, Very low loss at high frequency, suitable for high current 3, High insulation resistance, long life due to self-healing effect 4, Withstanding 2.5kV impulse voltage, class X2 5, As an across-the-line type noise suppression capacitor, and suitable for AC purpose Specifications: 1, Reference standard: GB/T14472-1998(IEC 60384-14) 2, Climatic category: 40/100/21 3, Rated voltage: 280VAC 4, Capacitance range: 0.0022~4.7μF 5, Capacitance tolerance: ±5% (J), ±10% (K), ±20% (M) 6, Voltage proof: 4.3Ur (5s) 7, Dissipation factor: ≤0.15% (CR≤1μF) ≤0.3% (CR>1MF) (20°C, 10kHz) 8, Insulation resistance:≥15,000MΩ (CR≤0.33mu;F) (20°C, 1min) ≥5,000s (CR>0.33μF) (20°C, 1min)
Product Origin:China
Brand Name:EMF
Price Terms:FOB Shenzhen
Payment Terms:T/T, L/C
Certification:
Description:Features: 1, Box type provides the identical outer appearance 2, Very low loss at high frequency, suitable for high current 3, High insulation resistance, long life due to self-healing effect 4, Withstanding 2.5kV impulse voltage, class X2 5, As an across-the-line type noise suppression capacitor, and suitable for AC purpose Specifications: 1, Reference standard: GB/T14472-1998(IEC 60384-14) 2, Climatic category: 40/100/21 3, Rated voltage: 280VAC 4, Capacitance range: 0.0022~4.7μF 5, Capacitance tolerance: ±5% (J), ±10% (K), ±20% (M) 6, Voltage proof: 4.3Ur (5s) 7, Dissipation factor: ≤0.15% (CR≤1μF) ≤0.3% (CR>1MF) (20°C, 10kHz) 8, Insulation resistance:≥15,000MΩ (CR≤0.33mu;F) (20°C, 1min) ≥5,000s (CR>0.33μF) (20°C, 1min)
