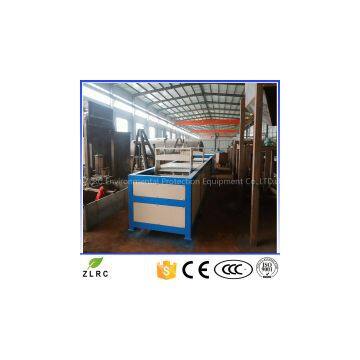

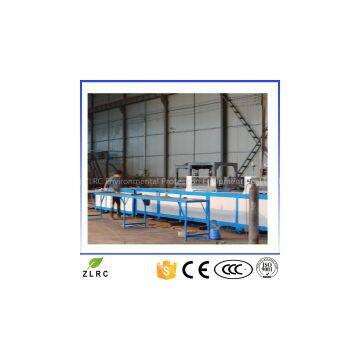

Single Platen Vertical Hydraulic Clamping Pultrusion Machine

1.Product instruction

1) The wholeproduction line occupe 20-30M at length, 3 meter at width, about 60-100squaremeter
2)The main machine is steel structure, stainlesssteel panel, side panle is paint.
3)Traction gantry make ordered according torequestd length.
4)Hydraulic station: we ued the latesttechnology: pump is multi-group pump source (to ensure stability in forwardspeed.) Hydraulic parts are made of stacked clip (easy maintenance), and thetension and clamping force can make stepless adjustment. Traction speed withprecision throttle, to ensure the stability of traction speed, and steplessspeed adjustment of the traction. Hydraulic station with switch, so as tocontrol the hydraulic oil heating up and down, so as to ensure the normaloperation of the hydraulic system
5)Using function: it have single and doublemanually operated gantry and double gantry automatic reciprocating runningfunction. Automatic intermittent time can be automatically setted, and theactual production tension can be feedback.by sensor
6) Three-stage temperature control ofthermal temperature control device, to achieve automatic control of heatingtemperature of the mold

2.Features:
1) Compact structure, smooth moving, convenientoperation and easy maintenance.
2)Infinitely variable frequency speedregulation, PLC circuit control panel.
3)Adjustable route, mould changing moreeasily.
4) It adopts manipulation grip tofeeding, accurate and reliable synchronously.
5) Designing all mould according tocustomers' requirements.

3. Technical parameter:
Roving racks: Dimension 2000mmx600mmx2000mm (5 layers)
Number of rolls: 105
Resin bath: 3 layers
Calibrating table plate: 1200mmx1200mm
Temperature zones: 24
Heating plate (optional): optional
Dimension: ≈ 3mx1.6mx1.9m

4. Applicaton:

 This production line can be used to producedifferent size and type FRP products, with different moulds. The products typelike round tube, rod, angle, I-beam, channel, square tube, rectangulartube, flat sheet etc .The machine just need one person to operate ,so it can save the manpower cost at the greatest extent.
