Accemble Prefabricated House
Negotiable
MOQ: 200 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Dubung
Place of Origin:
China
Model Number:
PD-2
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
Dubung
Place of Origin
China
Model Number
PD-2
Introduction:

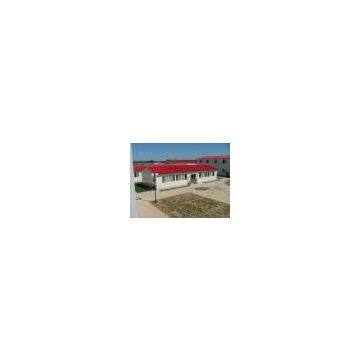

It is a kind of light steel structure prefab house with the EPS color steel
sandwich panel, rock wool, PU for the insulation. It can maximize customer
require and satisfaction for the cost and quality. All the house parts are
knock-down as flat package before loading container. We can provide the service
of installation, supervision and training by extra. Regarding to the house details,
please check as follows:
House Size:
1) Length is free as your requirement
2) Width: single-span beam less than 11.5m
3) Height: single floor less than 3m
4) Roof pitch: slope is 1:10~1:3
5) Floors: single
House Body:
1) Door: outside door as SIP door, aluminium alloy door or security door.
inside door as SIP door, aluminium alloy door or Compound wooden
door
2) Window: PVC material or aluminium alloy with window screen
3) Ground channel: U type, galvanized, thickness is 0.8mm
4) Square column: painted, with color steel compression decorative parts
5) Roof beam: with paint
6) Purline: C type with paint
7) Compression decorative parts: made of 0.4mm thick color steel sheet
8) Wall board: EPS color steel sandwich panel, rock wool, PU for the
insulation
9) Ceiling board: EPS color steel sandwich panel, rock wool, PU for the
insulation
10) Roof tiles: V35-125-750 color steel tiles, blue or red color
House Accessaries:
1) Watering system: custom made design and construction or as chinese
national standard
2) Wiring system: custom made design and construction or as chinese
national standard
3) Sanitary appliance: source china market for your needs
4) Furniture: source china market for your needs
Design technical data:
1)Wind load:0.6KN/㎡
2)Roof dead load:0.35KN/㎡
3)Roof live load:0.5KN/㎡
4) Earthquake intensity: 8 grade
5) Location temperature:-25ºC to 45ºC
Installation efficiency:
Four skilled labors can assemble 40 ㎡ house body in 8 hours.
Container transportation:
Every 40ft sea container may load 150-180 ㎡ house body stuff.
It is a kind of light steel structure prefab house with the EPS color steel
sandwich panel, rock wool, PU for the insulation. It can maximize customer
require and satisfaction for the cost and quality. All the house parts are
knock-down as flat package before loading container. We can provide the service
of installation, supervision and training by extra. Regarding to the house details,
please check as follows:
House Size:
1) Length is free as your requirement
2) Width: single-span beam less than 11.5m
3) Height: single floor less than 3m
4) Roof pitch: slope is 1:10~1:3
5) Floors: single
House Body:
1) Door: outside door as SIP door, aluminium alloy door or security door.
inside door as SIP door, aluminium alloy door or Compound wooden
door
2) Window: PVC material or aluminium alloy with window screen
3) Ground channel: U type, galvanized, thickness is 0.8mm
4) Square column: painted, with color steel compression decorative parts
5) Roof beam: with paint
6) Purline: C type with paint
7) Compression decorative parts: made of 0.4mm thick color steel sheet
8) Wall board: EPS color steel sandwich panel, rock wool, PU for the
insulation
9) Ceiling board: EPS color steel sandwich panel, rock wool, PU for the
insulation
10) Roof tiles: V35-125-750 color steel tiles, blue or red color
House Accessaries:
1) Watering system: custom made design and construction or as chinese
national standard
2) Wiring system: custom made design and construction or as chinese
national standard
3) Sanitary appliance: source china market for your needs
4) Furniture: source china market for your needs
Design technical data:
1)Wind load:0.6KN/㎡
2)Roof dead load:0.35KN/㎡
3)Roof live load:0.5KN/㎡
4) Earthquake intensity: 8 grade
5) Location temperature:-25ºC to 45ºC
Installation efficiency:
Four skilled labors can assemble 40 ㎡ house body in 8 hours.
Container transportation:
Every 40ft sea container may load 150-180 ㎡ house body stuff.
