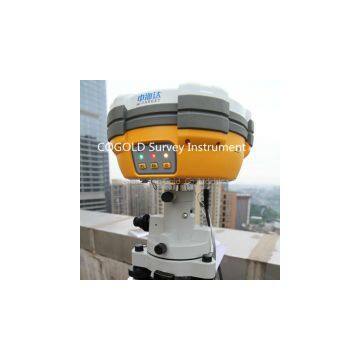

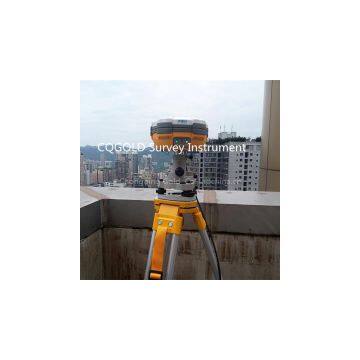

Hi Target V30 Dual Frequency GNSS With Integrated GPRS

MEASUREMENTS

• 220 Channels

• Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology

• High precision multiple correlator for GNSS pseudo range measurements

• Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response

• Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth

• Signal-to-Noise ratios reported in dB-Hz

• Proven Pacific Crest low elevation tracking technology

Satellite signals tracked simultaneously

GPS: Simultaneous L1C/A, L2C, L2E, L5

GLONASS: Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P

SBAS: Simultaneous L1 C/A, L5

Galileo: Simultaneous L1 BOC, E5A, E5B, E5AltBOC

BDS: B1, B2

QZSS: L1 C/A, L1 SAIF, L2C, L5

POSITIONING PERFORMANCE

Static and Fast Static GNSS surveying

Horizontal: 2.5mm+0.5ppm RMS

Vertical: 5mm+0.5ppm RMS

Post Processing Kinematic

(PPK / Stop & Go) GNSS surveying

Horizontal: 1cm+1ppm RMS

Vertical: 2.5cm+1ppm RMS

Initialization time: typically 10 minutes for base while 5 minutes for rover

Initialization reliability: typically > 99.9%

RealtimeKinematic(RTK) surveying

Horizontal: 8mm+1ppm RMS

Vertical: 15mm+1ppm RMS

Initialization time: typically < 8 seconds

Initialization reliability: typically > 99.9%

Code Differential GNSS positioning

Horizontal: 25cm+1ppm RMS

Vertical: 50cm+1ppm RMS

SBAS[iv]: 0.50m Horizontal, 0.85m Vertical
