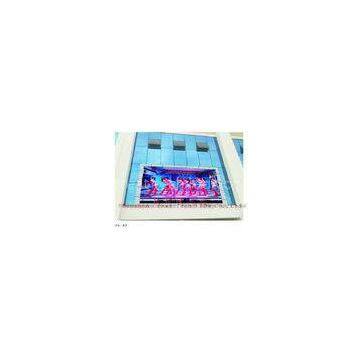

Wall Mounted 8mm Pixel Pitch SMD Outdoor Full Color LED Display For Theater

Delivery Time:20 days
Certification:CCC CE EMC FCC RoHS

Outdoor SMD LED Video Wall


Product model: GM6-AB-8S-PH8


Product Details:


Special design aluminum module, special design aluminum cabinet, patented design, unique in the world, new generation LED display.

Really outdoor SMD LED display, 10 years R&D, over 30 patents, high waterproof level, super high brightness, high contrast ratio, high grey scale, high refresh rate, super vivid color, super wide view angle, super soft display, super even surface


Quick Detail:
1. Available models: PH10mm, PH8mm, PH6mm, PH5mm…
2. high waterproof level, super high brightness, high contrast ratio, high grey scale, high refresh rate, super vivid color, super wide view angle, super soft display, super even surface
3. Light weight and easy to install
4. Perfect uniformity and no mosaic.
5. Lifespan is up to 100,000 hours.
6. Hanging structure design with gapless connection, quickly installation and dismantling



Description:

1. Light Weight

40KG for one square meter.

2. Die Casting Materials

Aluminum alloy

3. Slim Design

Cabinet size is 768mm x 768mm or any size you want on condition of integral multiple module size.

4. Easy Installation

An average worker can install more than 70 cabinets within one hour W/O tool.

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping

 malls, railways, airports, harbors, etc;

Specifications:

Model No.	GM6-AB-8S-PH8
Pixel Pitch	8mm
Module Size	256*128mm
Module Resolution(pixels)	32*16
Cabinet Size	768mm×768mm
Panel Resolution(pixels)	96×96
Pixel Configuration(RGB)	SMD 3 in 1
Pixel Density(pixels/㎡)	15625
Brightness(cd/㎡)	6000
Best Viewing Distance(m)	6-100
Average Power Consumption(W/㎡)	600
Waterproof Level	IP65
Vavelength	R 620-625 G 520-525 B 470-475
LED SPEC	3129
Viewing Angle	140°(H)/140°(V)
Operating Tempreture	–40~80°C
Video Frame Rate(Hz)	≥ 60HZ
Display Refresh Rate(Hz)	≥ 2000HZ
Grey Level(colors)	16.7million
MTBF	≥50,000 hours
Lifespan	≥100,000Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Constant 1/16
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automati
