Customized Flat Molten steel filtering part
It is made of high silica roving in 3 warp yarn and 3 weft yarn weave way and then make molding by coating phenolic resin under high temperature.The finished product is 360~380g/m2,mesh size of 1.5mm/8mesh,2mm/7mesh or 2.5mm/6mesh,standing temperature 1600C.It is used for filtering impurity when molten steel casting,we process it into different size as per client’s drawing,the products are as follows:
1. 7mesh,2mm aperture,2’’*2’’,45 degree angle cutting

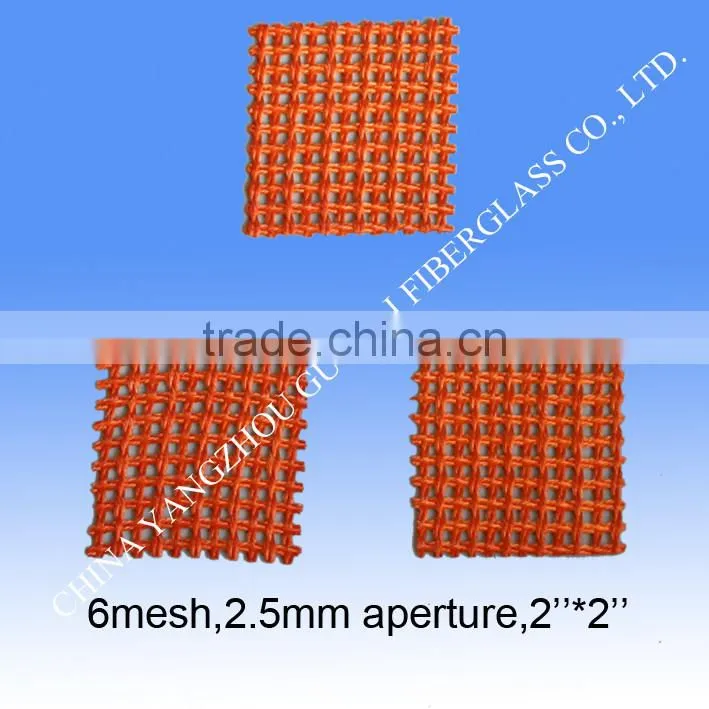

2. 6mesh,2.5mm aperture,2’’*2’’
3. 7mesh,2mm aperture,2.5’’*2.5’’
4. 6mesh,2.5mm aperture,3.5’’*3.5’’

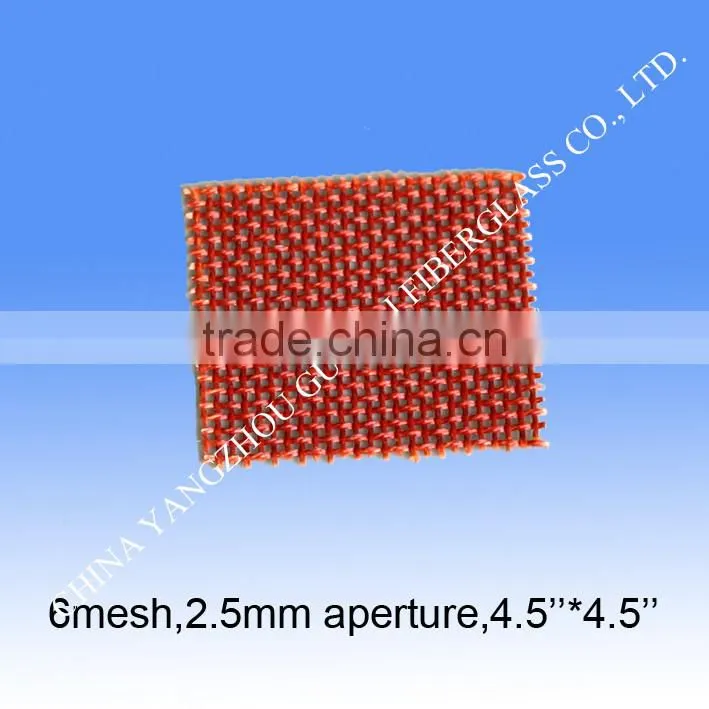

5. 6mesh,2.5mm aperture,4.5’’*4.5’’

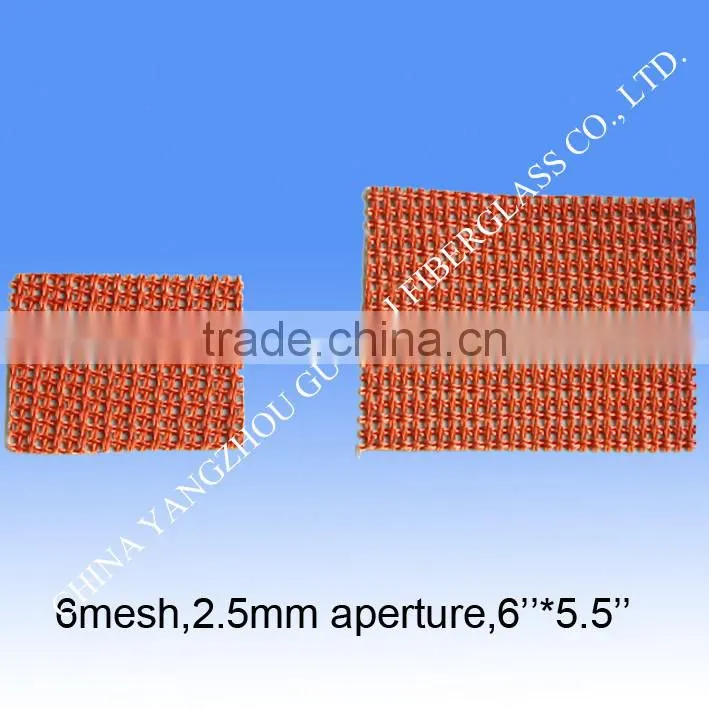

6. 6mesh,2.5mm aperture,6’’*5.5’’

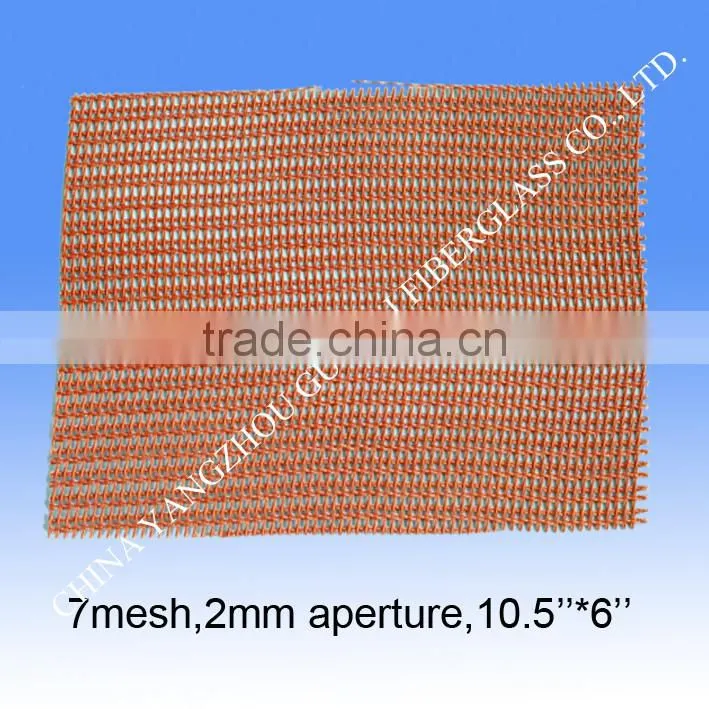

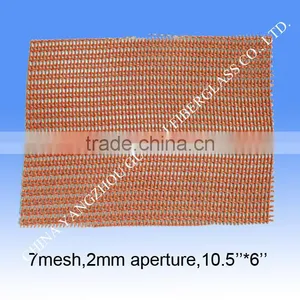

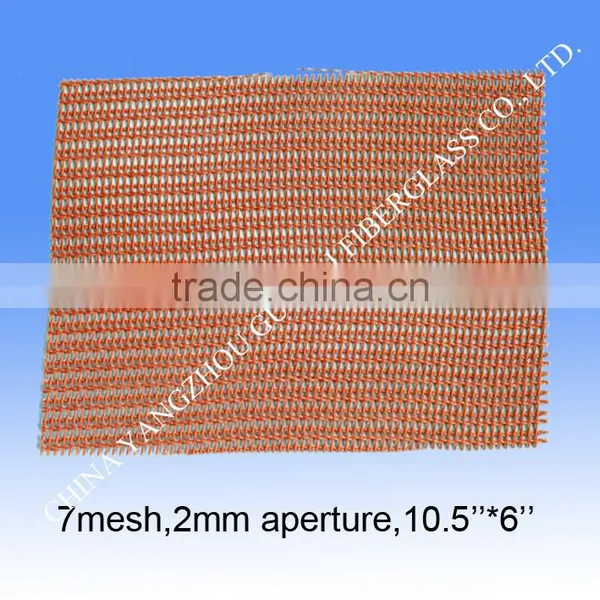

7. 7mesh,2mm aperture,10.5’’*6’’
8. 8mesh,1.5mm aperture,12’’*5.8’’
Product pictures:
Packing: carton or pallet as customers' requirement
Port: shanghai
In machinery industry,we need melt metals like aluminum,cooper,iron and steel and cast them into complicated geometric casts.In smelting process,there will be some slag caused by impurities and oxide,which will make holes in the casts.To avoid this problem,people developed various kinds of filtering products used in riser and gating system of molten metals.During the past 14 years,our company follows closely new technology in the world to develop filtering products and realize industrial production.Looking forward to your further inquiry!
