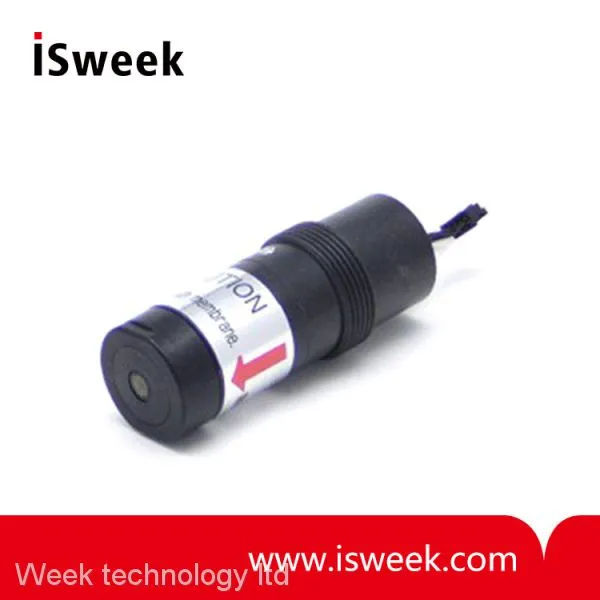

KDS-25B GS Yuasa Dissolved Oxygen Sensor
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Figaro
Place of Origin:
Japan
Model Number:
KDS-25B
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
Y511-A Online Self-cleaning Turbidity SensorNegotiableMOQ: 1 Piece -
Y514-A Online Self-cleaning Chlorophyll SensorNegotiableMOQ: 1 Piece
-
CS150/CS200 Series Low Cost Epoxy Body Conductivity SensorsNegotiableMOQ: 1 Piece
-
CS650/CS675/CS676 Series Industrial Contacting Conductivity SensorsNegotiableMOQ: 1 Piece
-
CS615/CS620 Series Conductivity/Resistivity Sensors With Sanitary Flange MountingNegotiableMOQ: 1 Piece
Brand Name
Figaro
Place of Origin
Japan
Model Number
KDS-25B
Usage
Other, Dissolved Oxygen Sensor
Theory
Other, Water Quality Sensor
- KDS-25B GS Yuasa Dissolved Oxygen Sensor Features:
* Long life
* Virtually no influence from CO2
* No external power supply required for sensor operation
* No warmup time is required
KDS-25B GS Yuasa Dissolved Oxygen Sensor Applications:
* Water quality control
The GS Yuasa Dissolved Oxygen Sensor KDS-25B is a unique galvanic cell type sensor which was developed for water quality control. Its most notable features are long life expectancy and it is not influenced by CO2.
KDS-25B GS Yuasa Dissolved Oxygen Sensor Specification:
Measurement range: 0~80mg/L dissolved oxygen
Accuracy in water at 25℃±1℃: ±5% (full scale)
Operating conditions
Atmospheric pressure: 81~203kPa (corresponds to 10m of water depth)
Temperature: 5~35℃
Relative humidity: 10 ~ 90%R.H. (no condensation)
Thermal time constant: 10 min. or less
Initial output voltage in clean air under standard test conditions: 8.0~15.0mV
Standard test conditions
Atmospheric pressure: 1013±5hPa
Temperature: 25℃±1℃
Relative humidity: 60±5%
